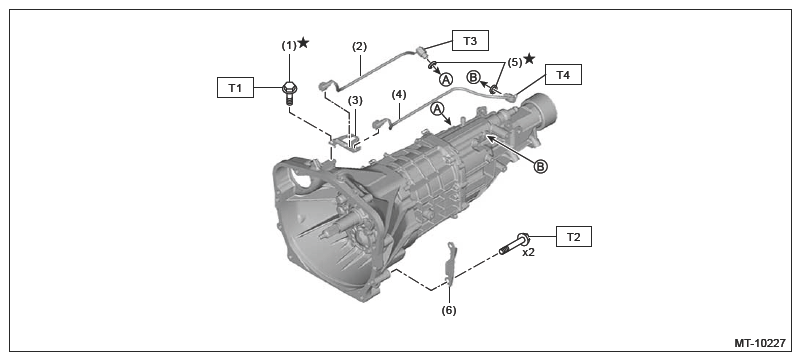

Switch And Harness
| (1) | Bolt |
| (2) | Back-up light switch |
| (3) | Harness bracket |
| (4) | Neutral position switch |
| (5) | Gasket |
| (6) | Cover plate |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 50 (5.1, 36.9)
T3: Ref. to MANUAL TRANSMISSION>SWITCHES AND HARNESS>INSTALLATION>BACK-UP LIGHT SWITCH .
T4: Ref. to MANUAL TRANSMISSION>SWITCHES AND HARNESS>INSTALLATION>NEUTRAL POSITION SWITCH .
