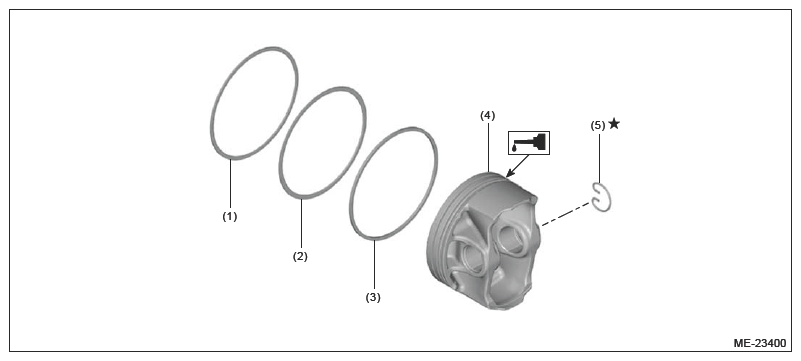

Cylinder Block: Assembly: Piston
| (1) | Top ring |
| (2) | Second ring |
| (3) | Oil ring |
| (4) | Piston |
| (5) | Circlip |
- Install a new circlip on only one side of the piston using long-nose pliers.CAUTION:
- When installing the circlip using long-nose pliers, do not allow the circlip claw sections to contact with each other as shown in the figure.
(a) Gap between the circlip claw sections: 1 mm (0.0394 in) or more - After operation, make sure the circlip is firmly installed on the circlip groove of the piston.
- If the circlip needs to be reinstalled after installed to the piston, the circlip cannot be reused. Use a new circlip.

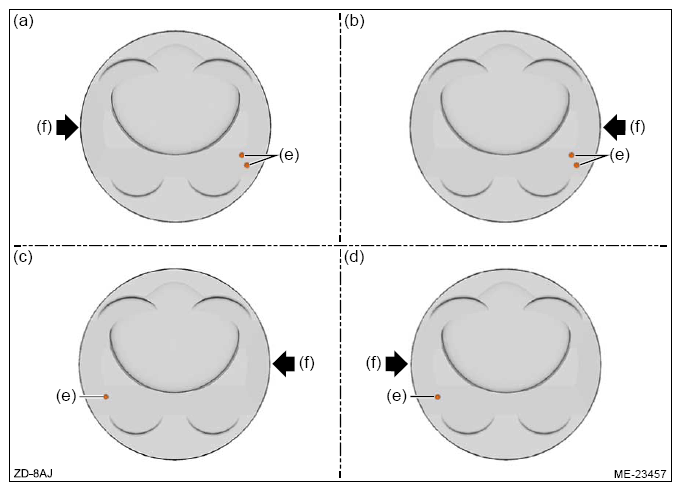

NOTE: The circlip installation position is determined depending on the position of cylinder to be used. Be careful not to mistake the position.(a) Piston of #1cylinder (b) Piston of #3 cylinder (c) Piston of #2 cylinder (d) Piston of #4 cylinder (e) Front mark (f) Circlip installation position - When installing the circlip using long-nose pliers, do not allow the circlip claw sections to contact with each other as shown in the figure.

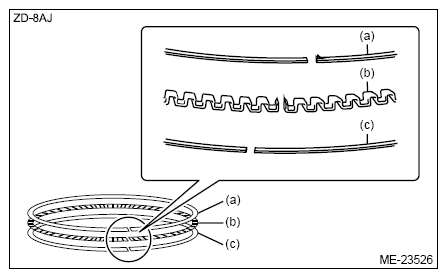

- Install the oil rings to the piston in the order of expander, lower rail and upper rail by hand.NOTE: Oil ring consists of the upper rail, expander and lower rail.

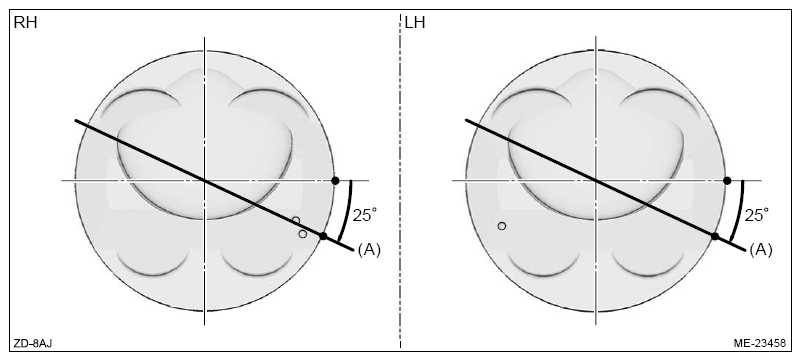

(a) Upper rail (b) Expander (c) Lower rail - Set the ring gap of the expander to the position (A).

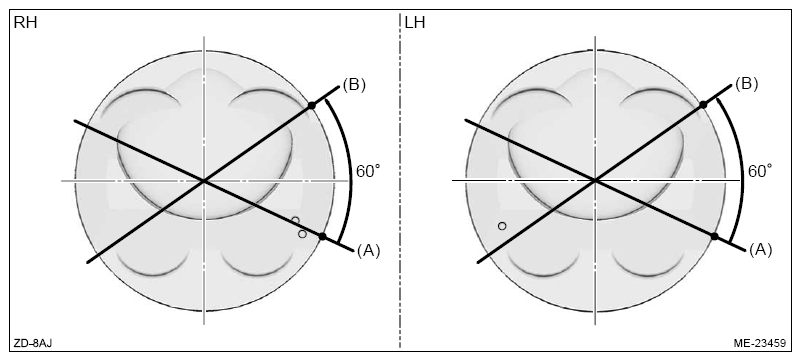

- Set the ring gap of the lower rail at position (B), located 60° counterclockwise from the position (A) in the figure.

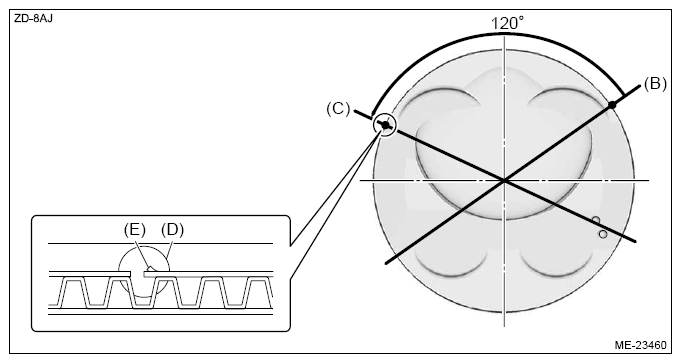

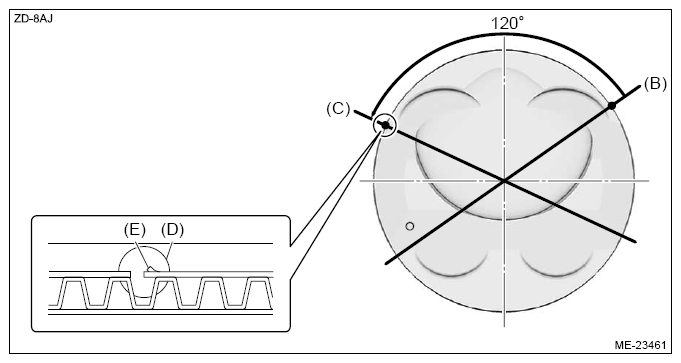

- Set the ring gap of the upper rail at position (C), located 120° counterclockwise from the position (B) in the figure, and align the upper rail spin stopper (E) to the side hole (D) on the piston.
- Set the ring gap of the expander to the position (A).
- Install the compression rings to the piston in the order of second ring and top ring, using piston ring expander.

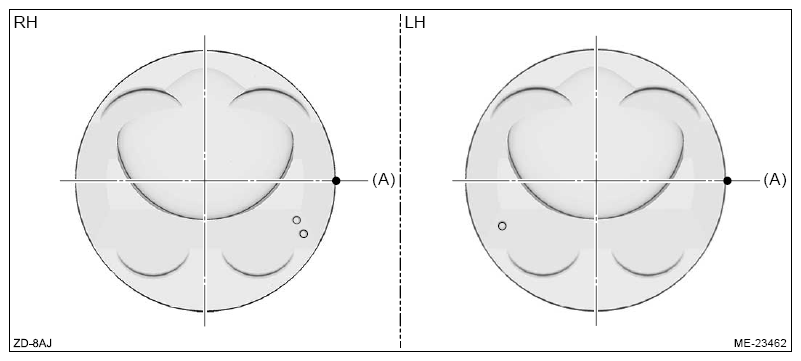

- Set the ring gap of the second ring to the position (A) in the figure.NOTE: The ring mark (2BZ) on the second ring should face the piston crown.

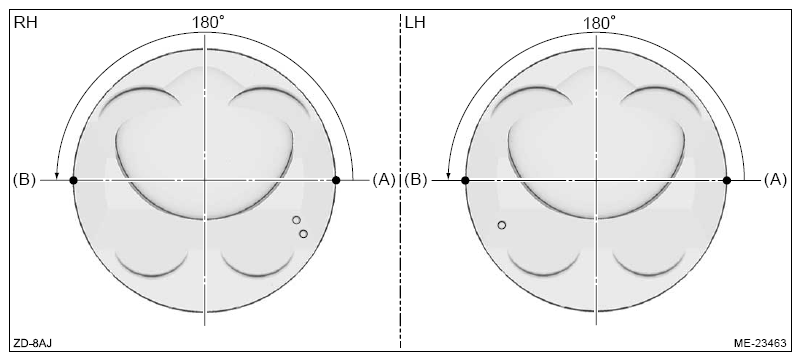

- Set the ring gap of top ring at (B) in the figure on the 180° opposite direction of (A).NOTE: The ring mark (1BZ) of the top ring should face the piston crown.
- Set the ring gap of the second ring to the position (A) in the figure.
- Check again that the piston rings are installed correctly.NOTE: Also check that the ring gaps is not positioned within the range of piston skirt extended line.
