No. 1 Brake Cylinder

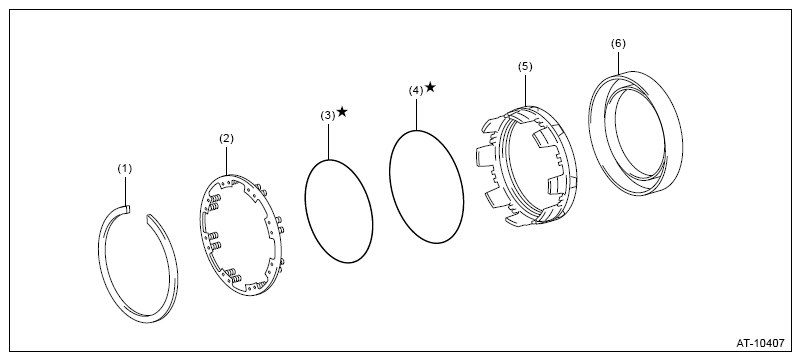

No. 1 Brake Cylinder
Courtesy of SUBARU OF AMERICA, INC.
(1)
Snap ring
(3)
O-ring
(5)
No. 1 brake piston
(2)
No. 1 brake piston return spring
(4)
O-ring
(6)
No. 1 brake cylinder
Courtesy of SUBARU OF AMERICA, INC.
