Intermediate Shaft: Assembly

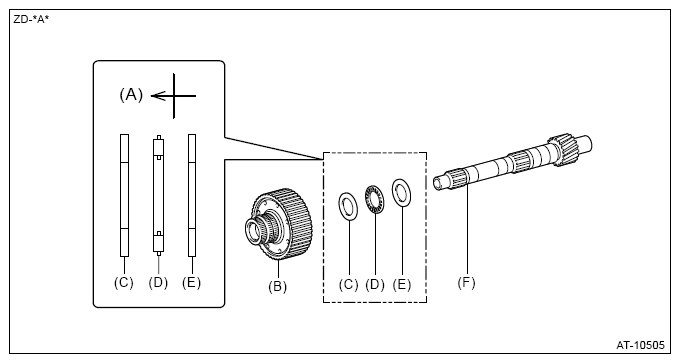

1. Install the rear planetary ring gear flange, front thrust bearing race, thrust needle roller bearing, and rear thrust bearing race.
   NOTE: Make sure to install the front thrust bearing race, thrust needle roller bearing, and rear thrust bearing race in the right direction.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Oil pump side
(B)	Rear planetary ring gear flange
(C)	Front thrust bearing race
(D)	Thrust needle roller bearing
(E)	Rear thrust bearing race
(F)	Intermediate shaft
