Muffler Cutter

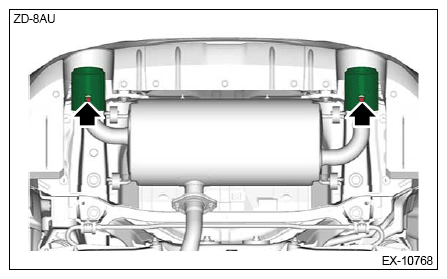

Install the muffler cutter.

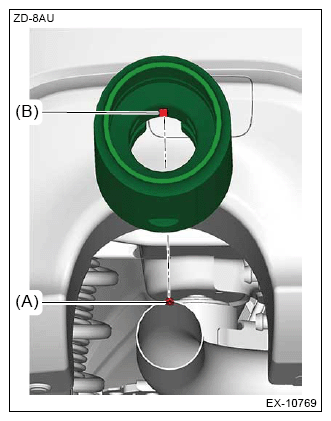

Align the cutout portion (B) of the muffler cutter with the protrusion portion (A) of the tail pipe and push it in to the end.

Courtesy of SUBARU OF AMERICA, INC.

Install the muffler cutter mounting bolt.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
