Front Arm: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .
  3. Disconnect the tie-rod end. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>TIE-ROD END>REMOVAL .
  4. Remove the bolt and nut, and remove the plate arm front.

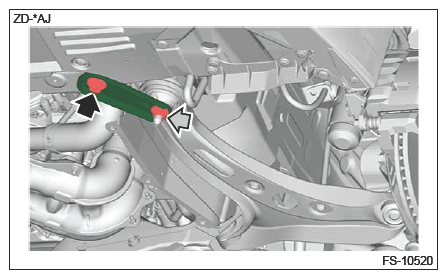

    G16524794Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the arm assembly front.
    1. Remove the bolt and nut from the crossmember COMPL front.
    2. Lower the arm assembly front.

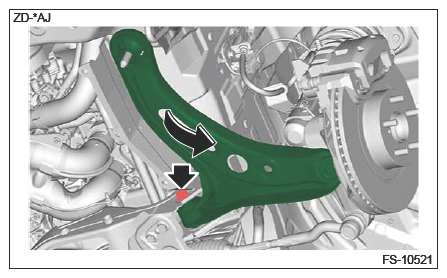

      G16524795Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the snap pin (a).
    4. Remove the flange nut (b).
    5. Use a ball joint puller (d) to detach the arm assembly front (c).
    CAUTION:
    • Be careful not to damage the boot of the ball joint.
    • Be careful not to damage the peripheral parts.
    NOTE: Securely hook the ball joint puller (d) to the collar (e).

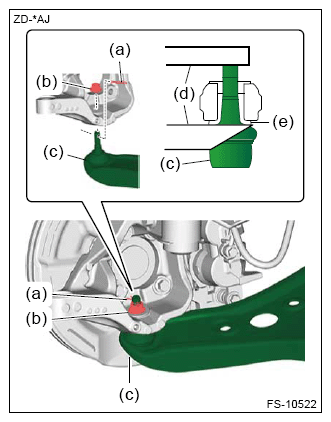

    G16524796Courtesy of SUBARU OF AMERICA, INC.
  6. Using the ST, remove the stud bolt.
    NOTE: Perform this procedure only when required.

    Preparation tool:

    ST: STUD BOLT SOCKET (20299AG020)

    G16524797Courtesy of SUBARU OF AMERICA, INC.
