Front Planetary Ring Gear: Assembly

1. Install the front planetary ring gear flange.
   1. Install the front planetary ring gear flange to the center planetary ring gear.

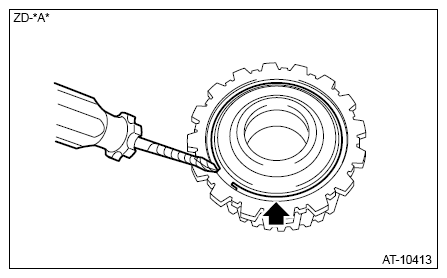

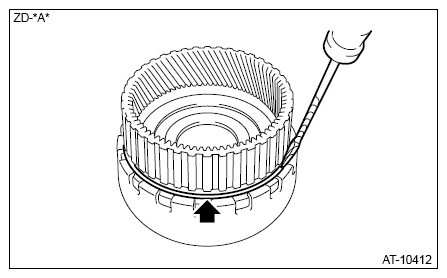

   2. Using a flat tip screwdriver wrapped with protection tape, install the snap ring.
      CAUTION: Be careful not to damage the center planetary ring gear.

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the front planetary ring gear.
   1. Install the front planetary ring gear to the center planetary ring gear.
   2. Using a flat tip screwdriver wrapped with protection tape, install the snap ring.
      CAUTION:

      • Be careful not to damage the front planetary ring gear.

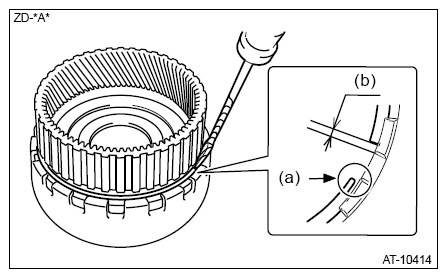

      • The snap ring end (a) should not enter the area (b) shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
