Hanger Bracket

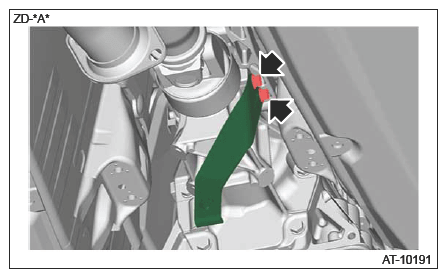

  1. Install the hanger bracket.

    Tightening torque:

    23 N.m (2.3 kgf-m, 17.0 ft-lb)

    G16525632Courtesy of SUBARU OF AMERICA, INC.
  2. Install the center exhaust pipe. Ref. to EXHAUST (H4DO)>CENTER EXHAUST PIPE>INSTALLATION .
