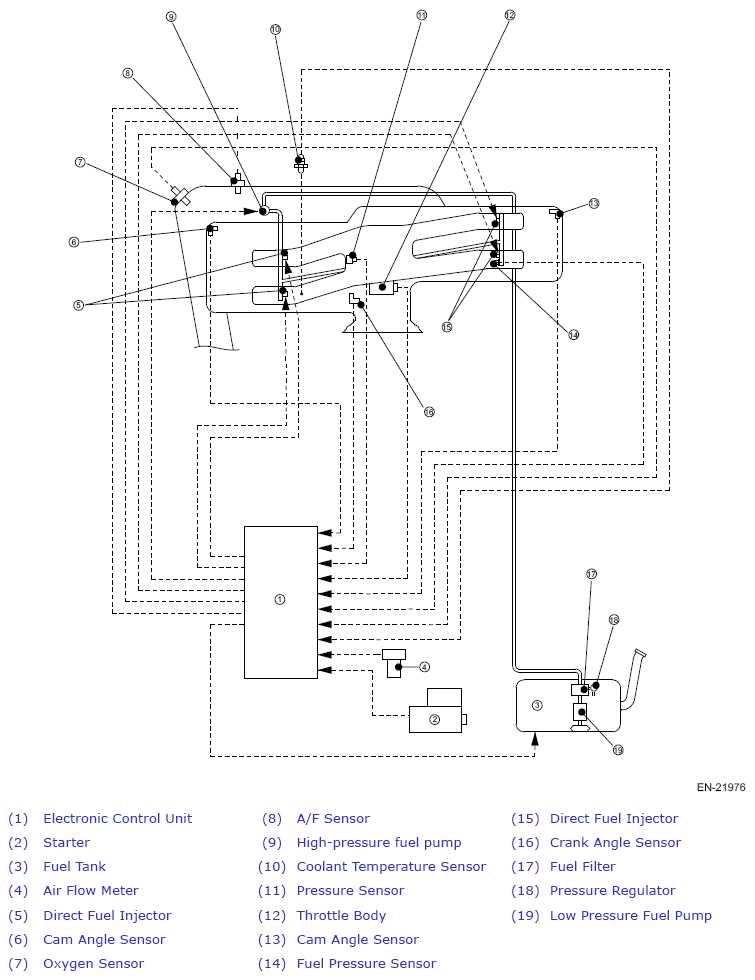

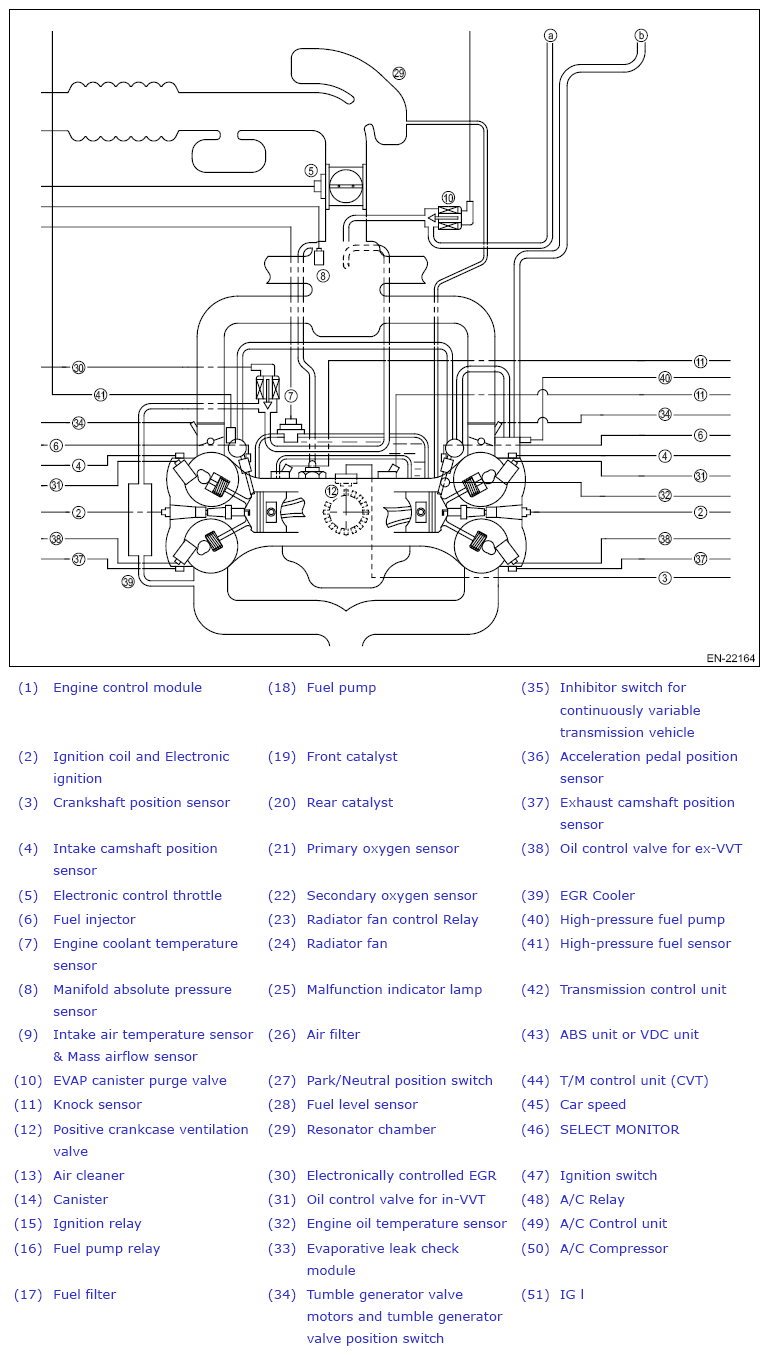

Home › Subaru › 2022 › Crosstrek Base, Standard Trans › Repair and Diagnosis › Engine Performance › System › Engine Control System (2.0L (Except For HEV)) (Diagnostics) - Introduction › General Description › System Block Diagram
