External Connection Terminal: Removal: Front

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
NOTE:
- Release the shift lock and shift the select lever to the "N" position. Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL .
- On power seat models, move the front seat all the way forward before disconnecting the ground terminal from the battery sensor.
Remove the heater control assembly. Ref. to AIR CONDITIONER>CONTROL PANEL>REMOVAL .
Remove the cover assembly front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
Remove the tray center UPR. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CONSOLE>REMOVAL .

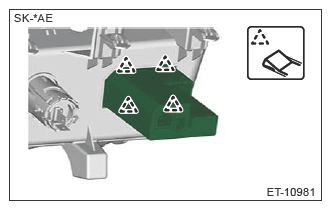

Remove the AUX unit assembly.

While pressing the claw, press it in from the rear to remove the AUX unit assembly.
