Brake Control System (Diagnostics)
›
General Description
›

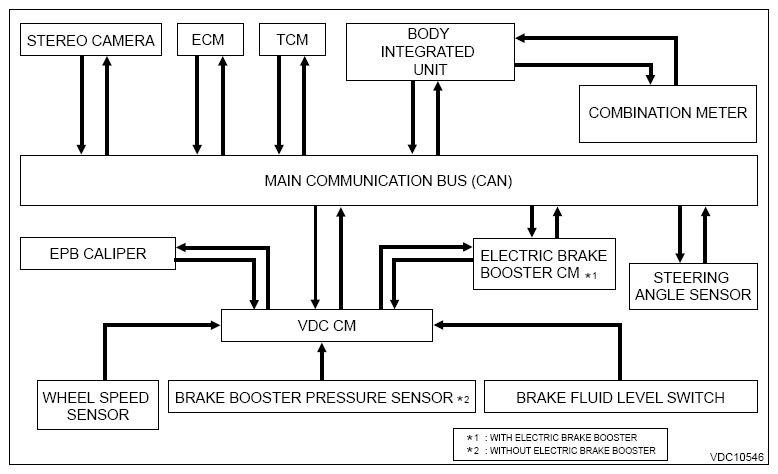

System Block Diagram
System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
If the electric brake booster lost its boost function, VDC will back up the boost function.
Courtesy of SUBARU OF AMERICA, INC.
