Instrumentation System (Diagnostics)
›
General Description
›
System Block Diagram
System Block Diagram

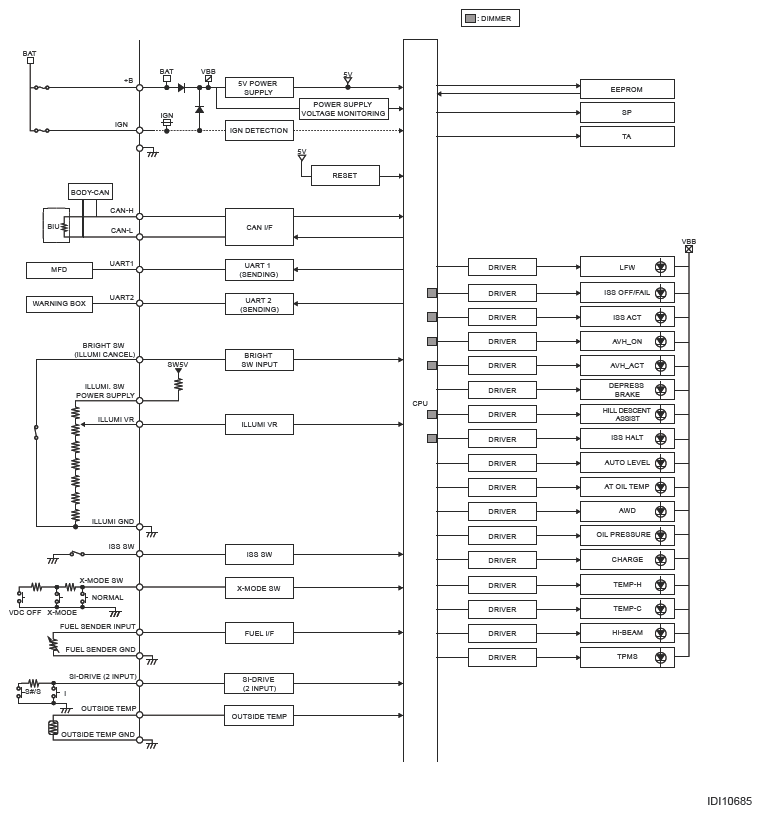

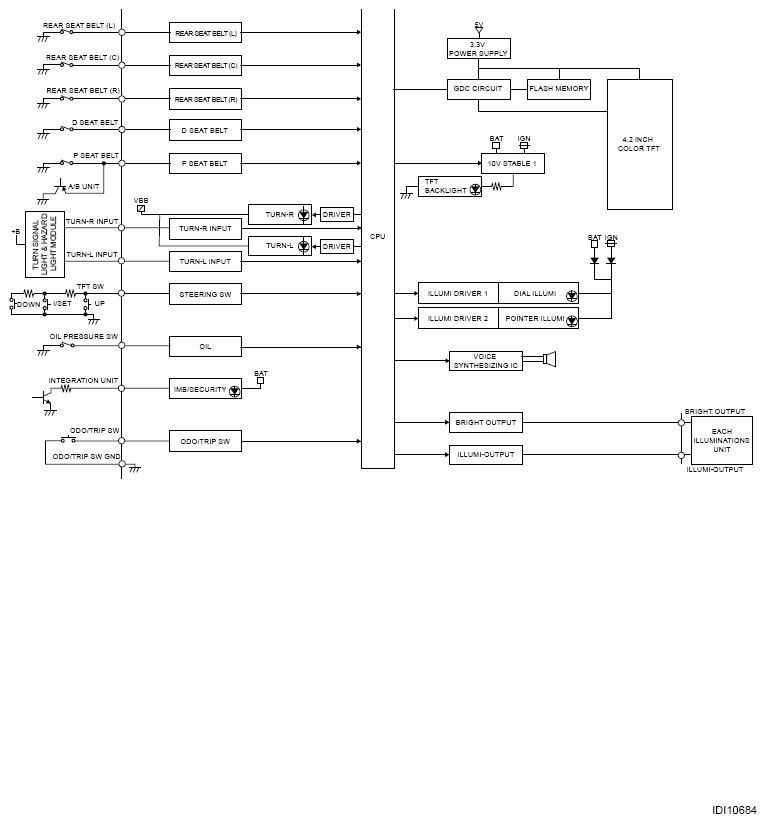

Color TFT meter
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.

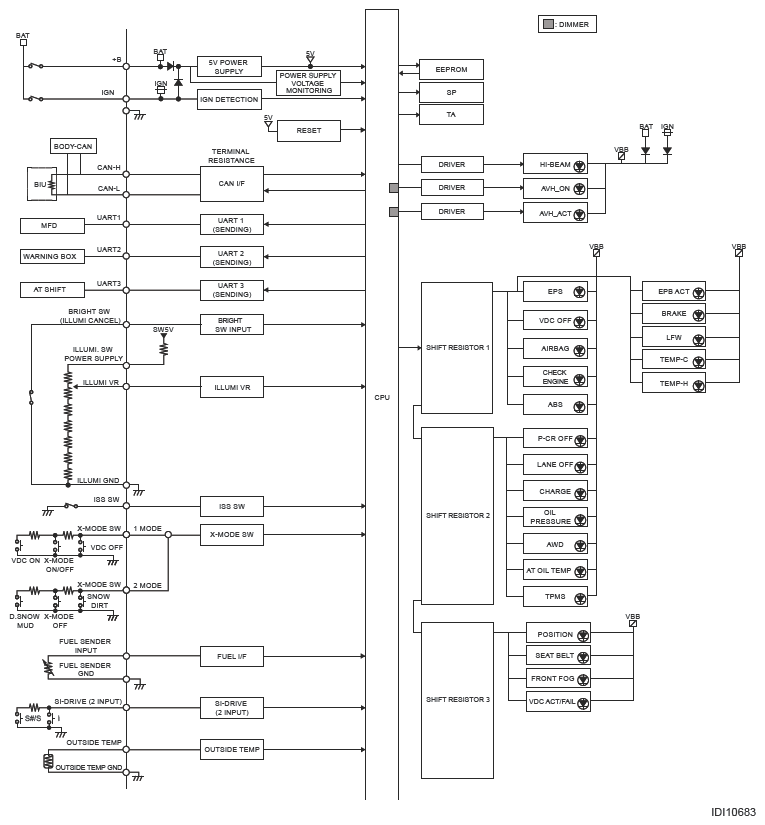

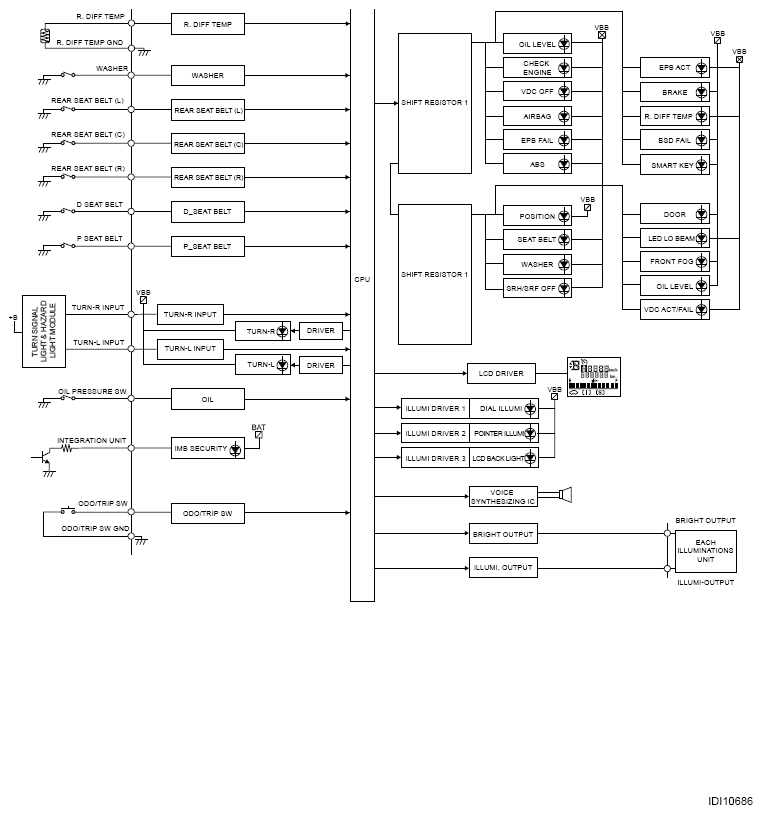

Normal meter
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
