Active Grille Shutter

• Except for WILDERNESS model

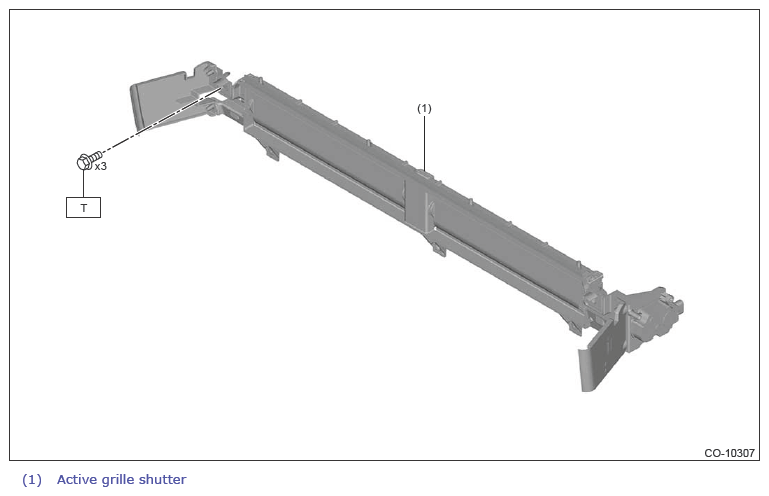

  Fig 1: Active Grille Shutter Components (With Torque Specification) - Except For Wilderness Model

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T:  Ref. to COOLING (H4DO)>ACTIVE GRILLE SHUTTER>INSTALLATION .

• WILDERNESS model

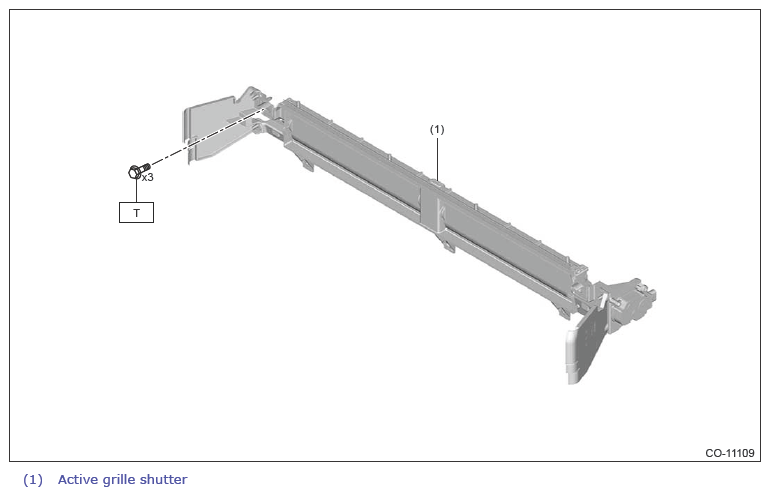

Fig 2: Active Grille Shutter Components (With Torque Specification) - Wilderness Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Ref. to COOLING (H4DO)>ACTIVE GRILLE SHUTTER>INSTALLATION .
