Steering Wheel And Column

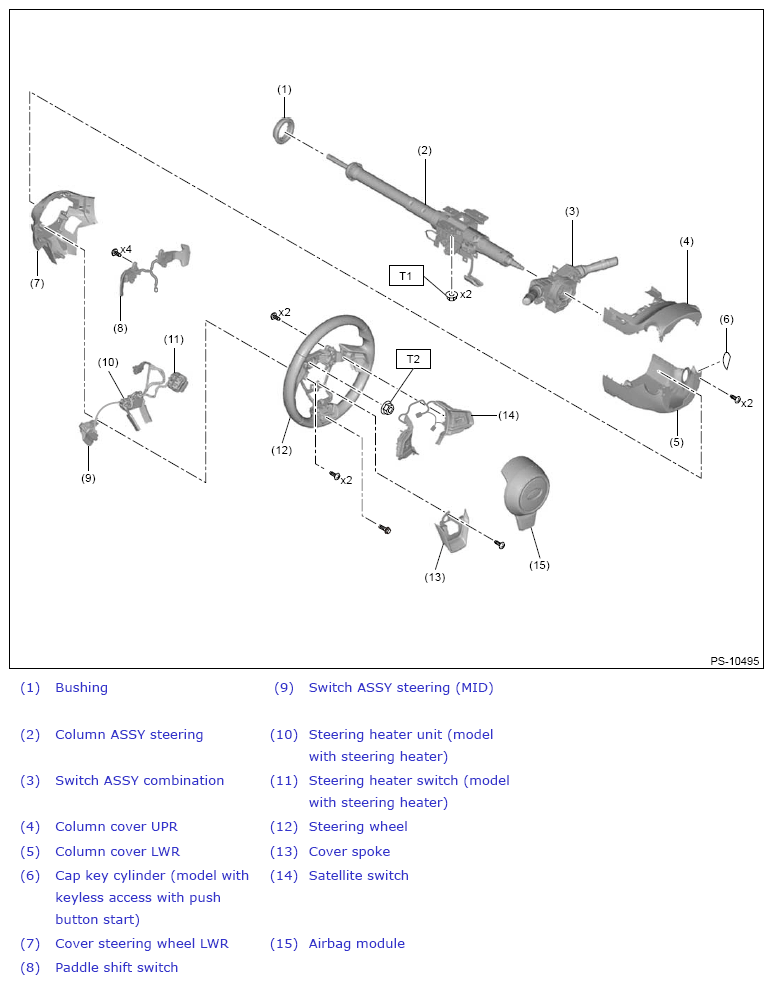

Fig 1: Steering Wheel And Column Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-ib)

T1: 20 (2.0, 14.8)

T2: 39 (4.0, 28.8)
