Wilderness Model

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE > BATTERY .
Remove the bumper face front. Ref. to BUMPER FACE .

Remove the front view camera assembly.

CAUTION:

Do not drop or apply any impact to the front view camera assembly because it is a precision equipment.

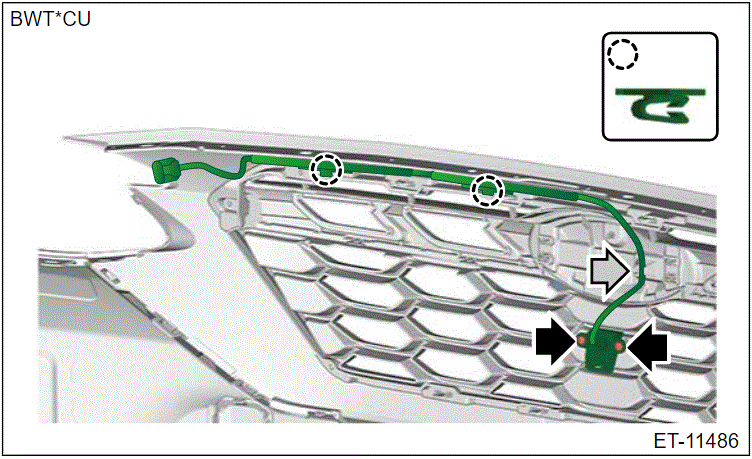

Remove the screws and remove the front view camera assembly from the front grille assembly clamp.

Courtesy of SUBARU OF AMERICA, INC.
