Outback Model

  1. Remove the reflex reflector assembly.

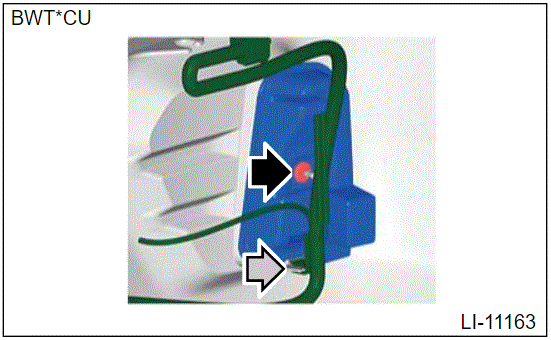

    1. Remove the clip. (Model with Reverse Automatic Braking)
    2. Remove the nut, and then remove the reflex reflector cover.
      G00608722Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the reflex reflector assembly.

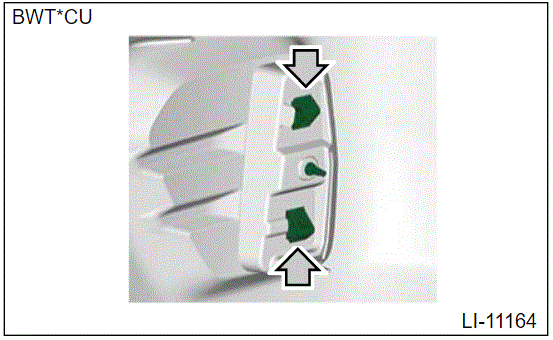

    1. From behind the bumper face rear, release the claws and remove the reflex reflector assembly.
      G00608723Courtesy of SUBARU OF AMERICA, INC.
G13951992Courtesy of SUBARU OF AMERICA, INC.
