Radiator Fan Control Module (Sub)
WARNING: This page is about a different variant/trim than selected.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

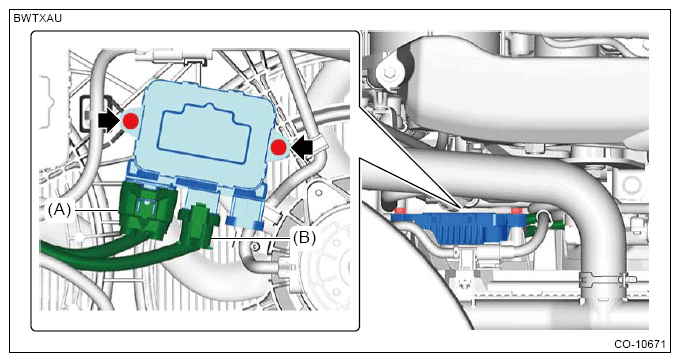

- Disconnect the connector (A) and connector (B), and remove the radiator fan control module (sub).
