Cam Carrier

WARNING: This page is about a different variant/trim than selected.

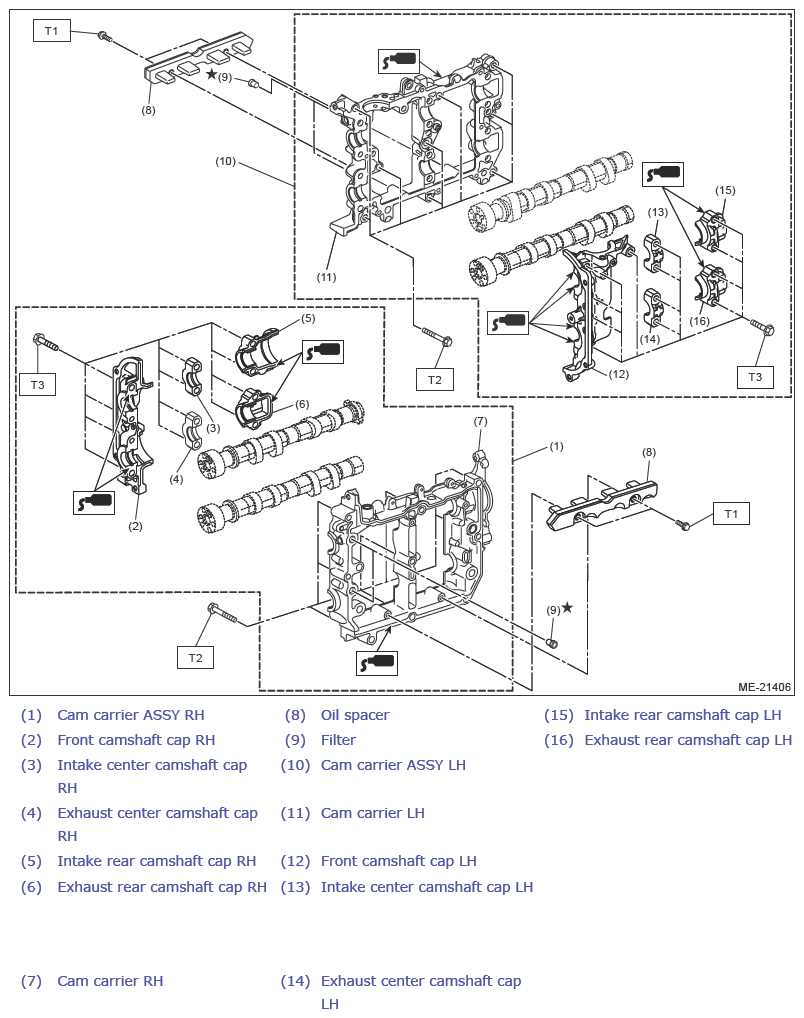

Fig 1: Cam Carrier Components

G13948753

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: Ref. to MECHANICAL (H4DOTC)>CAM CARRIER>INSTALLATION .

T3: Ref. to MECHANICAL (H4DOTC)>CAM CARRIER>ASSEMBLY .
