Primary Pressure Sensor: Removal

CAUTION:

If water or oil contacts the connector terminal of primary pressure sensor, replace it with a new part.

Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>TRANSMISSION ASSEMBLY>REMOVAL

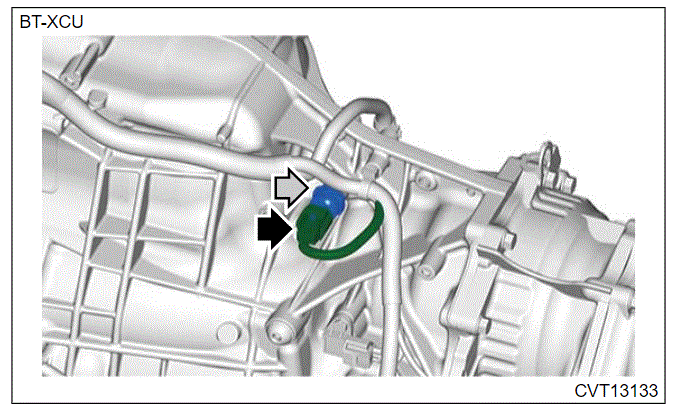

Disconnect the connector, and remove the primary pressure sensor.
NOTE:
Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the primary pressure sensor.
