Extension Case: Assembly

Install the plugs with new O-rings.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install a new extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE OIL SEAL>REPLACEMENT

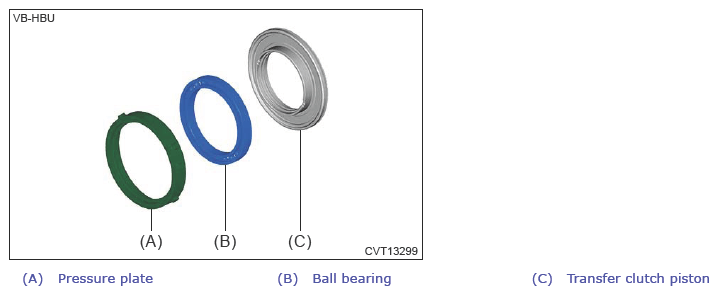

Install a new ball bearing and pressure plate to the transfer clutch piston.

Courtesy of SUBARU OF AMERICA, INC.
Install a new D-ring and O-ring.
NOTE:
Apply CVTF to the D-ring and O-ring.

Courtesy of SUBARU OF AMERICA, INC.

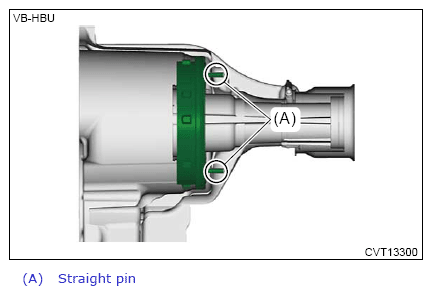

Install the transfer clutch piston to the extension case.
NOTE:
Align the straight pin position.

Courtesy of SUBARU OF AMERICA, INC.

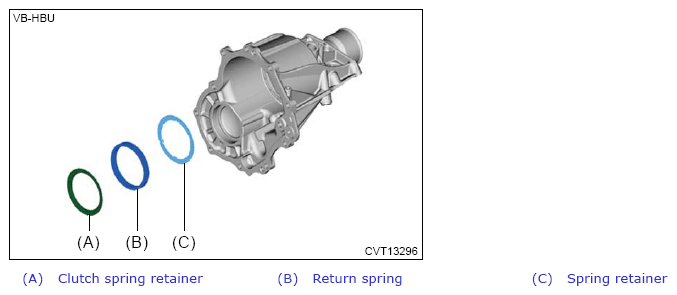

Install the spring retainer, return spring and clutch spring retainer.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, install the snap ring.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.
Install the dust cover.

Courtesy of SUBARU OF AMERICA, INC.
