Reverse Brake And Intermediate Case

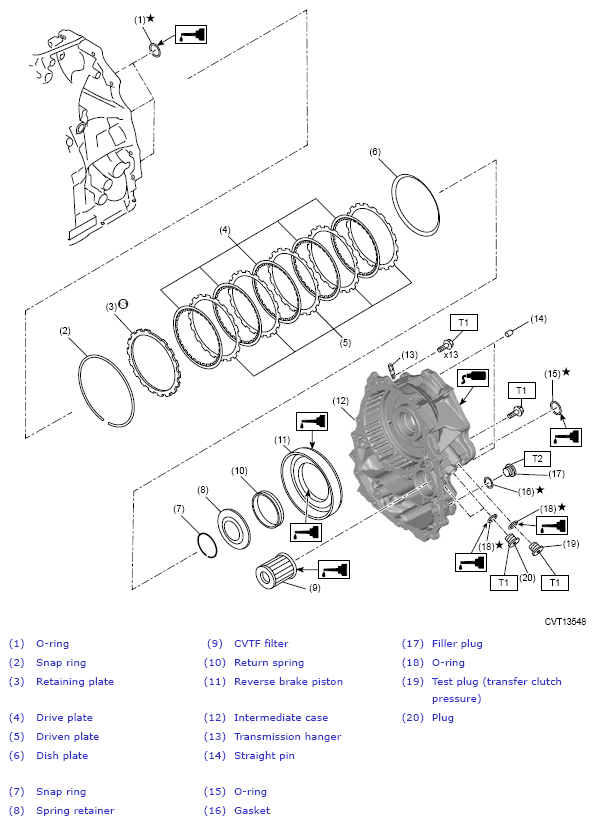

Fig 1: Reverse Brake And Intermediate Case Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 50 (5.1, 36.9)
