Rear Exhaust Pipe: Installation

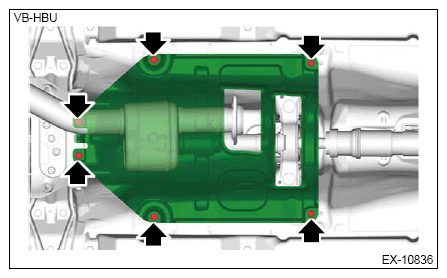

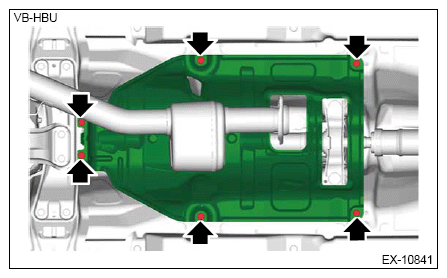

Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
- CVT model
Courtesy of SUBARU OF AMERICA, INC.
- MT model
Courtesy of SUBARU OF AMERICA, INC.

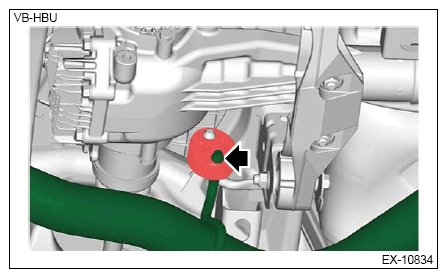

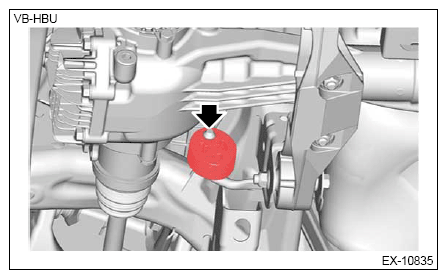

Apply a coat of spray type lubricant to the mating area of cushion rubber.
Install the cushion rubber.

Courtesy of SUBARU OF AMERICA, INC.
Install the rear exhaust pipe.
NOTE:
After installation, degrease the cushion rubber.

Courtesy of SUBARU OF AMERICA, INC.

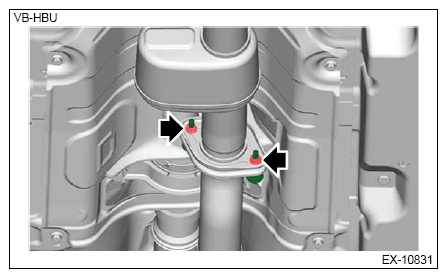

Using a new gasket, connect the rear exhaust pipe and muffler.
CAUTION:
Be sure to use a new self-locking nut.

Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Using a new gasket, connect the center exhaust pipe (rear) and the rear exhaust pipe.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
