Electronically-Controlled Damper Model

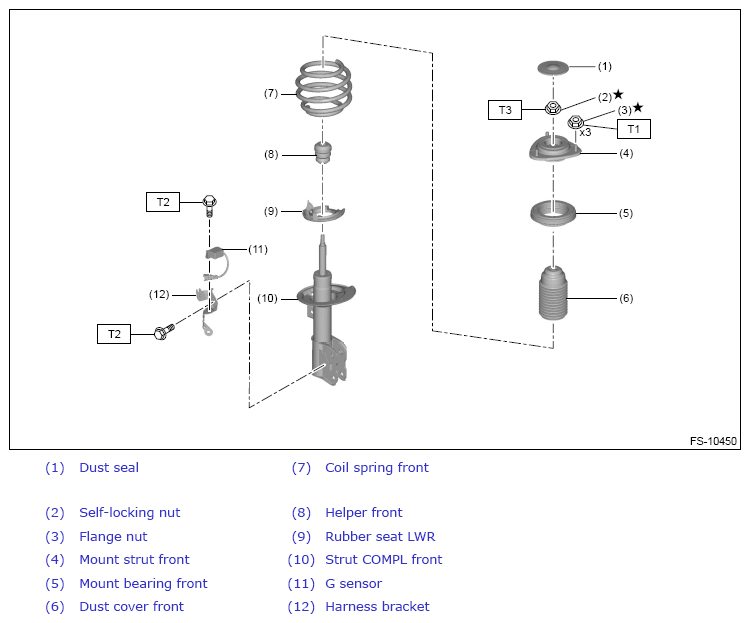

Fig 1: Front Strut Components (With Torque Specifications) (Electronically-Controlled Damper Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 32 (3.3, 23.6)

T2: 33 (3.4, 24.3)

T3: 55 (5.6, 40.6)
