Standard Damper Model

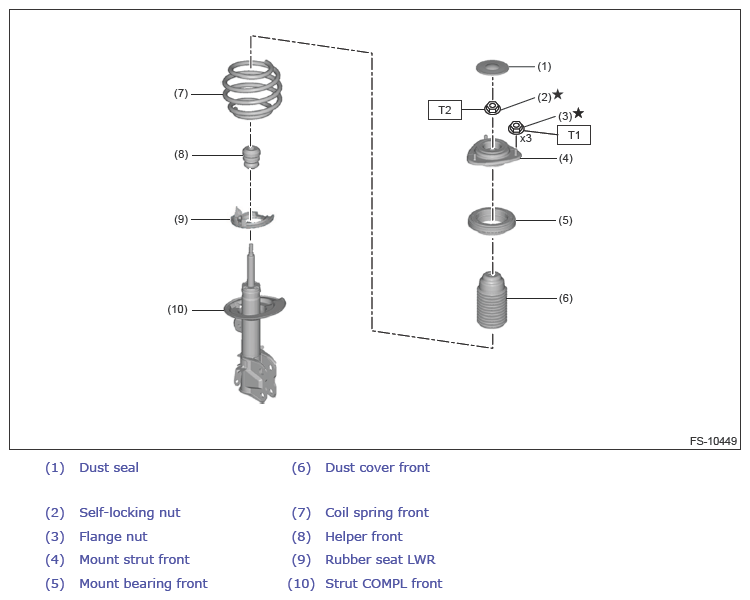

Fig 1: Front Strut Components (With Torque Specifications) (Standard Damper Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 32 (3.3, 23.6)

T2: 55 (5.6, 40.6)
