Electronically-Controlled Damper Model

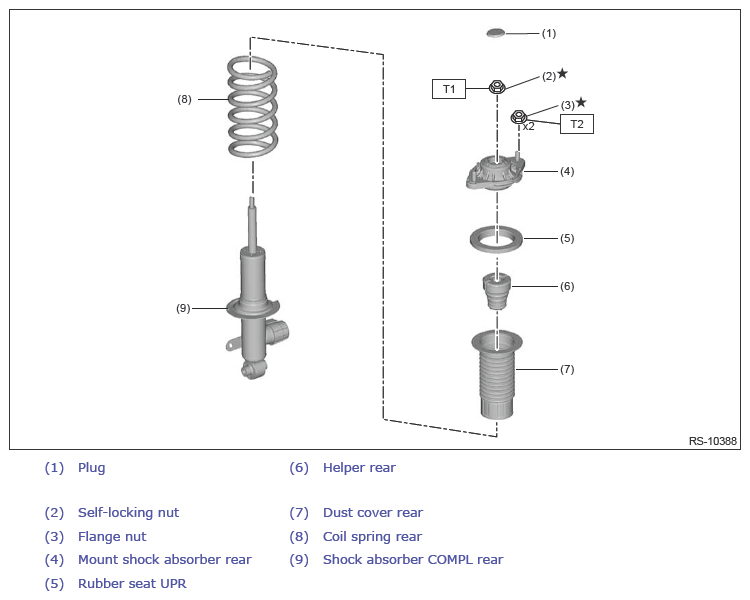

Fig 1: Rear Shock Absorber Components (With Torque Specifications) (Electronically-Controlled Damper Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 30 (3.1, 22.1)
