Operating Cylinder: Removal
CAUTION:
Do not let clutch fluid come into contact with the painted surface of the vehicle.
Wash away with water immediately and wipe off if it is spilled by accident.
NOTE:
The operating cylinder cannot be disassembled.
- Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL

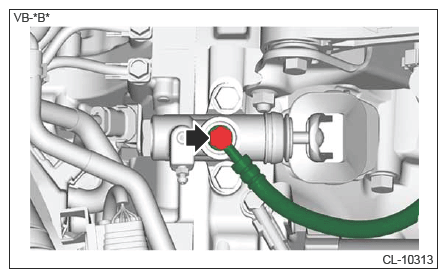

- Disconnect the clutch hose.NOTE:
Prepare the container for collecting the clutch fluid.

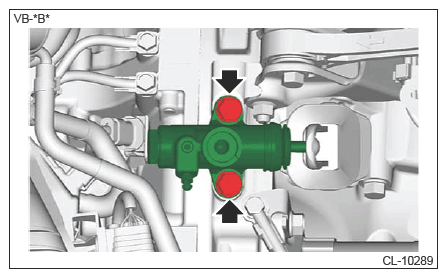

- Remove the operating cylinder.
