Components With Torque Specifications

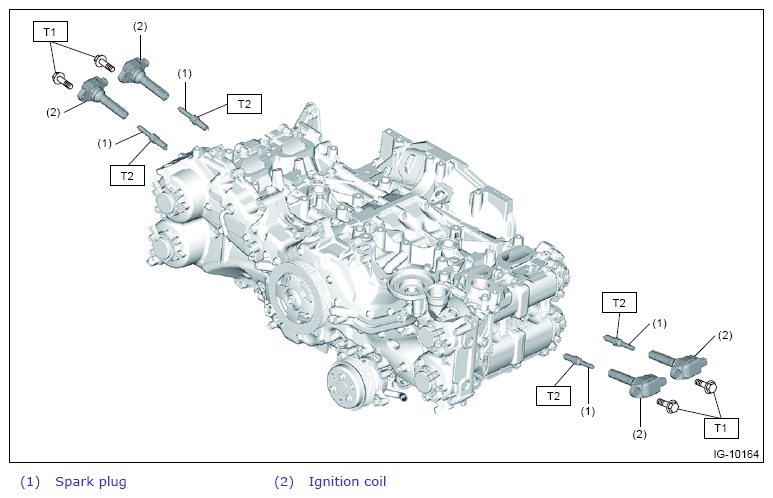

Fig 1: Ignition Coil And Spark Plug Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  N.m (kgf-m, ft-lb)

T1:  8.5 (0.9, 6.3)

T2:  17.5 (1.8, 12.9)
