Front Suspension And Wheel Alignment: Stabilizer: Removal: Stabilizer

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the under guard front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER> REMOVAL .
3. Remove the crossmember support rear LH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .
4. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR) .

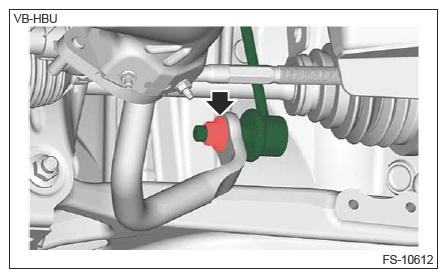

5. Remove the nut and disconnect the stabilizer link front (lower part).

   Courtesy of SUBARU OF AMERICA, INC.

6. Remove the stabilizer front.

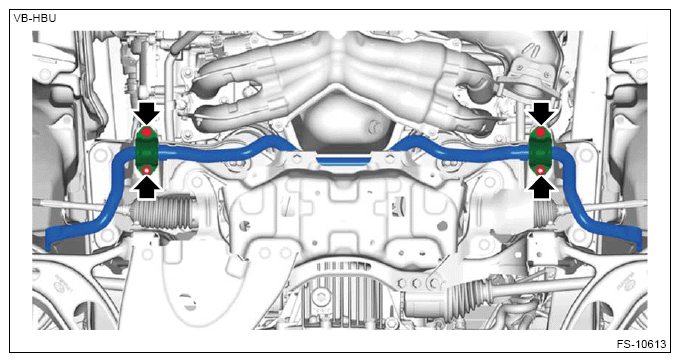

   1. Remove the bolt and nut, and remove the clamp stabilizer.
   2. Remove the rubber bushing stabilizer front.
   3. Remove the stabilizer front.

Courtesy of SUBARU OF AMERICA, INC.
