Smart Rearview Camera Assembly

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the trim panel assembly rear gate UPR. Ref. to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>REMOVAL .
  3. Remove the smart rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the smart rearview camera because it is a precision equipment.
    1. Disconnect the connector.
    2. Release the claw while extending the smart mirror camera cover, and then remove the smart mirror camera assembly.

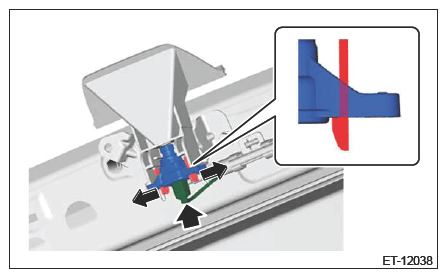

      G16441538Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolts and remove the bracket smart mirror camera.

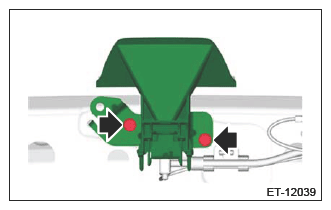

      G16441539Courtesy of SUBARU OF AMERICA, INC.
    4. Release the claws and remove the smart mirror camera cover.

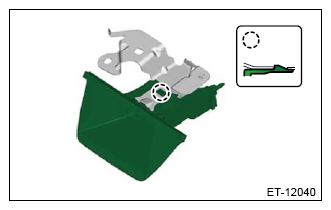

G16441540Courtesy of SUBARU OF AMERICA, INC.
