Entertainment System: Woofer: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

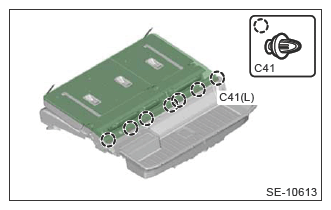

2. Remove the floor mat side, floor mat center, and box sub trunk assembly.

   Courtesy of SUBARU OF AMERICA, INC.

   NOTE: Remove the clips for the backrest back side mat of the third-row seat.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the third-row seats. Ref. to SEATS>THIRD SEAT .
4. Remove the trim panel assembly apron RH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL .

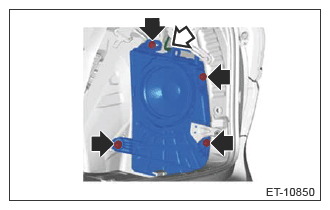

5. Remove the speaker assembly woofer.
   1. Disconnect the connector.
   2. Remove the bolts and remove the speaker assembly woofer.

Courtesy of SUBARU OF AMERICA, INC.
