Backup Unit: Removal
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
- Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .

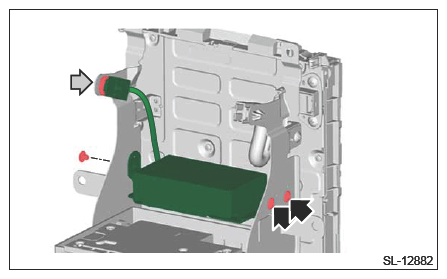

- Remove the screws and release the connector clips, and then remove the backup unit.
