Door Lock Assembly

• Front

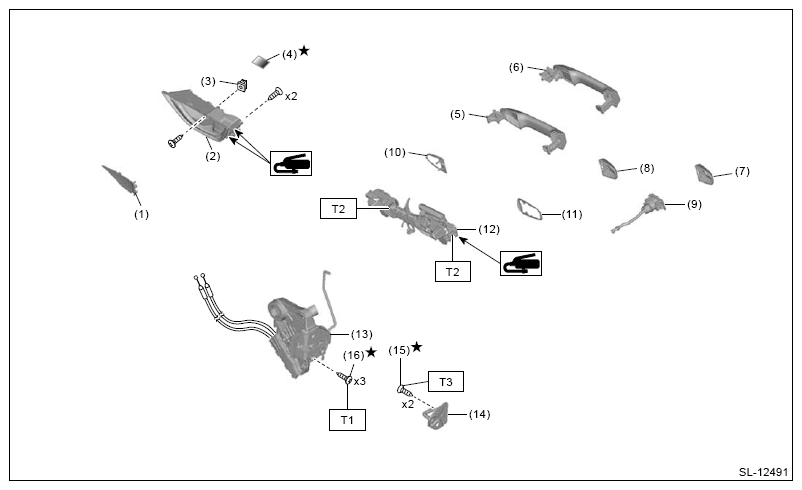

  Fig 1: Door Lock Assembly Components Location - Front

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Cover remote door
  (2)	Remote ASSY front door
  (3)	Grommet screw
  (4)	Unwoven cloth
  (5)	Handle front door outer (keyless entry model)
  (6)	Handle front door outer (model with keyless access with push button start)
  (7)	Cover handle front outer (RH side)
  (8)	Cover handle front outer (LH side)
  (9)	Key cylinder (LH side)
  (10)	Spacer door handle outer A
  (11)	Spacer door handle outer B
  (12)	Frame ASSY front door handle outer
  (13)	Latch & actuator ASSY front
  (14)	Striker door
  (15)	Screw
  (16)	TORX® bolt

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 6.5 (0.7, 4.8)

  T2: 7.5 (0.8, 5.5)

  T3: 18 (1.8, 13.3)

• Rear

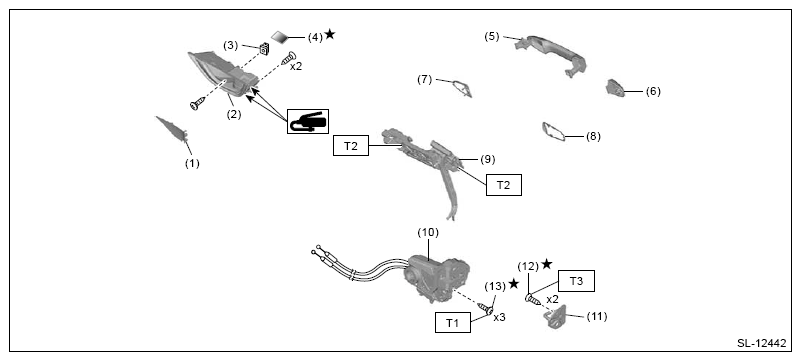

Fig 2: Door Lock Assembly Components Location - Rear

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.7, 4.8)

T2: 7.5 (0.8, 5.5)

T3: 18 (1.8, 13.3)
