Motor Layout

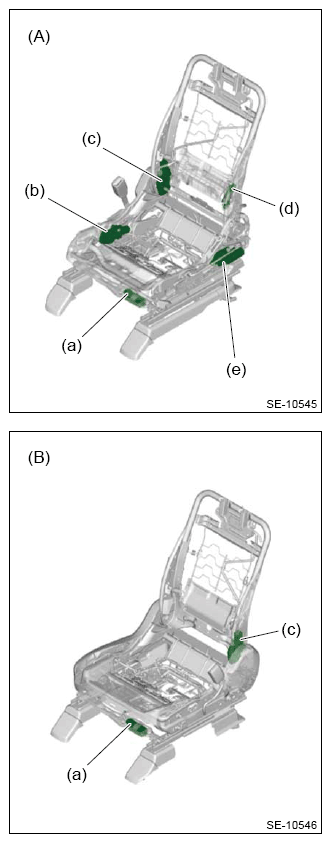

G16445234Courtesy of SUBARU OF AMERICA, INC.
(A) Driver's seat
(B) Passenger's seat
(a) Slide motor
(c) Reclining motor
(b) Tilt motor
(d) Lumbar motor (12-way type)
(e) Lifter motor
