Crank Pulley

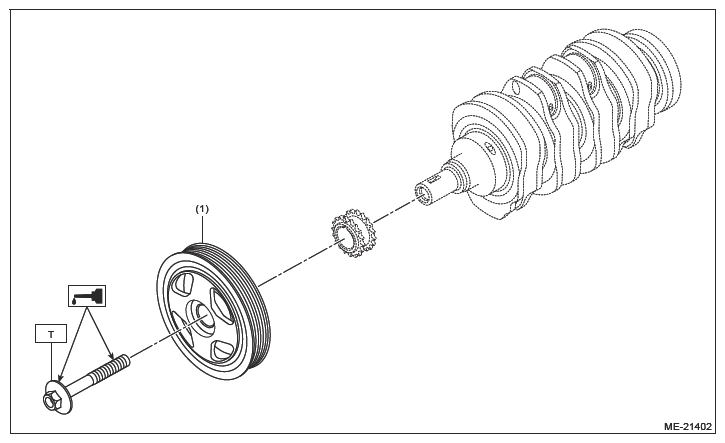

Fig 1: Crank Pulley Components Location

G16384531

Courtesy of SUBARU OF AMERICA, INC.

(1)	Crank pulley

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to MECHANICAL (H4DOTC)>CRANK PULLEY>INSTALLATION .
