Internal Gear

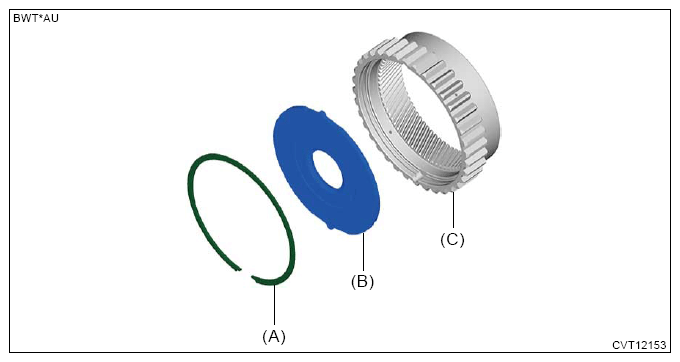

  1. Install the snap ring and thrust gear plate.
    G16389680Courtesy of SUBARU OF AMERICA, INC.
    (A) Snap ring
    (B) Thrust gear plate
    (C) Internal gear

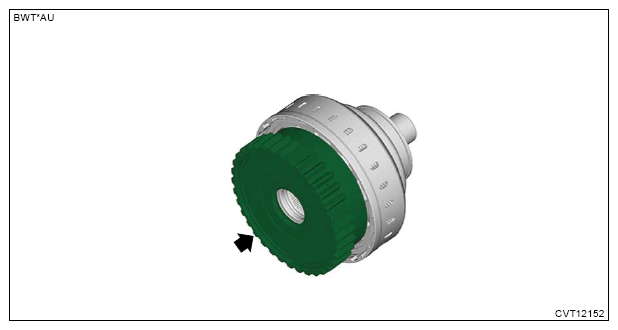

  2. Install the internal gear.
    G13622164Courtesy of SUBARU OF AMERICA, INC.
