Planetary Carrier

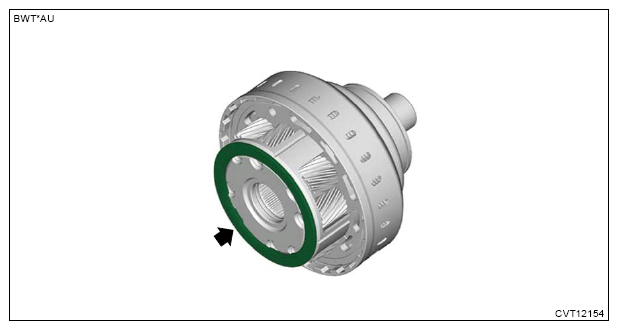

  1. Remove the thrust bearing.
    G13622166Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the snap ring, planetary carrier, thrust bearing, sun gear and forward clutch hub.
    G16389682Courtesy of SUBARU OF AMERICA, INC.
    (A) Snap ring
    (B) Planetary carrier
    (C) Thrust bearing
    (D) Sun gear
    (E) Forward clutch hub
    (F) Forward clutch drum

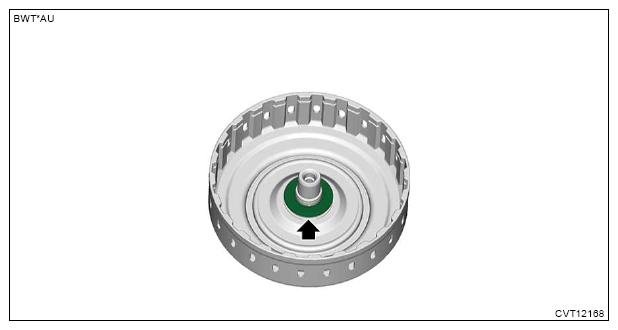

  3. Remove the washer.
    G13622168Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the thrust bearing.
    G13622168Courtesy of SUBARU OF AMERICA, INC.
