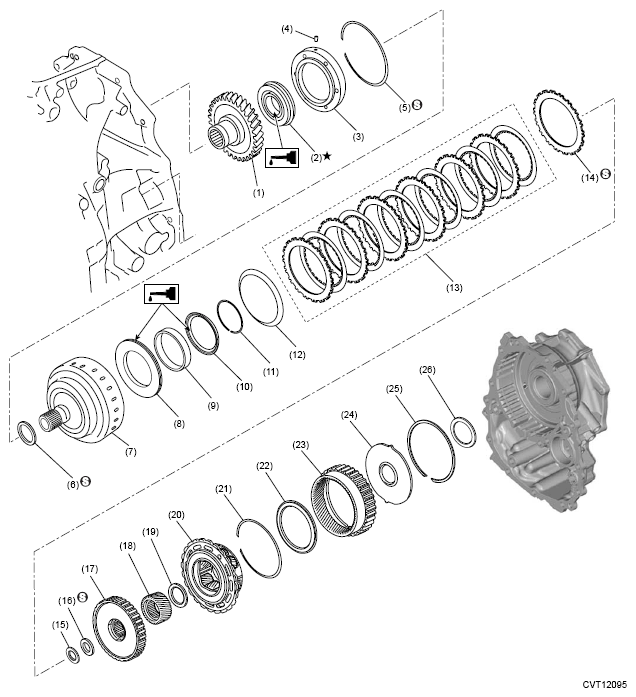

Forward Clutch And Reduction Driven Gear
| (1) | Reduction driven gear |
| (2) | Ball bearing |
| (3) | Bearing retainer |
| (4) | Straight pin |
| (5) | Snap ring |
| (6) | Washer |
| (7) | Forward clutch drum |
| (8) | Forward clutch piston |
| (9) | Return spring |
| (10) | Forward clutch piston retainer |
| (11) | Snap ring |
| (12) | Dish plate |
| (13) | Forward clutch plate |
| (14) | Retaining plate |
| (15) | Thrust bearing |
| (16) | Washer |
| (17) | Forward clutch hub |
| (18) | Sun gear |
| (19) | Thrust bearing |
| (20) | Planetary carrier |
| (21) | Snap ring |
| (22) | Thrust bearing |
| (23) | Internal gear |
| (24) | Thrust gear plate |
| (25) | Snap ring |
| (26) | Thrust bearing |
