Intermediate Case: Disassembly

  1. Remove the parking support.
    G14611315Courtesy of SUBARU OF AMERICA, INC.

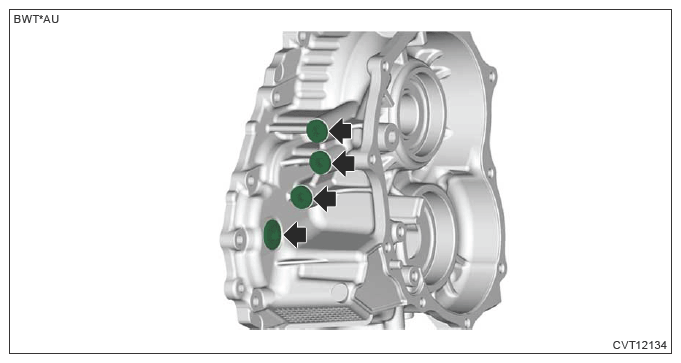

  2. Remove all plugs.
    G13622147Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REVERSE BRAKE>DISASSEMBLY .
