Rear Drive Shaft: Removal

  1. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .
  2. Remove the rear drive shaft.
    G13622083Courtesy of SUBARU OF AMERICA, INC.

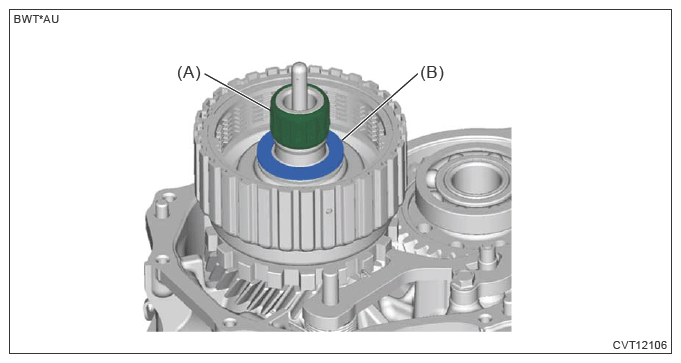

  3. Remove the needle bearing (A) and thrust bearing (B).
    G13622084Courtesy of SUBARU OF AMERICA, INC.
