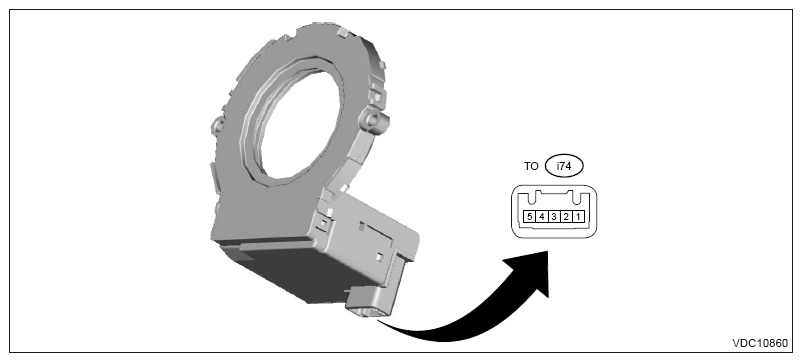

Electrical Specification

Courtesy of SUBARU OF AMERICA, INC.

Connector No.	Terminal No.	Contents	Measuring condition	Standard
i74	1	Ground	-	-
i74	2	Chassis CAN_L signal	-	-
i74	3	Chassis CAN_H signal	-	-
i74	4	Ignition power supply	Ignition switch: ON	9 - 16 V
i74	5	-	-	-
