Electronic Throttle Control Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

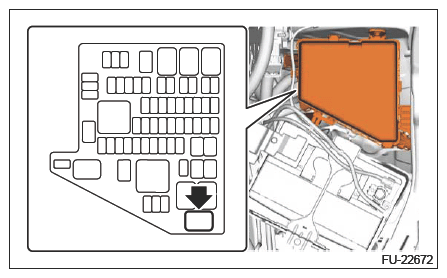

  2. Remove the electronic throttle control relay from the main fuse box.
    G16438596Courtesy of SUBARU OF AMERICA, INC.
