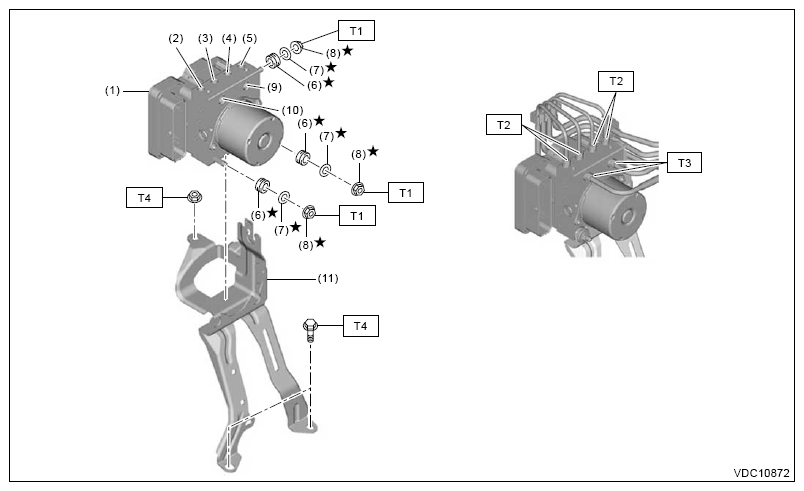

VDC Control Module And Hydraulic Control Unit (VDCCM & H/U)
| (1) | Hydraulic unit ASSY VDC |
| (2) | Rear RH outlet |
| (3) | Front LH outlet |
| (4) | Front RH outlet |
| (5) | Rear LH outlet |
| (6) | Damper |
| (7) | Washer |
| (8) | Nut |
| (9) | Primary inlet |
| (10) | Secondary inlet |
| (11) | Bracket COMPL hydraulic unit VDC |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 15 (1.5, 11.1)
T3: 19 (1.9, 14.0)
T4: 33 (3.4, 24.3)
