Battery And Slow Blow Fuse

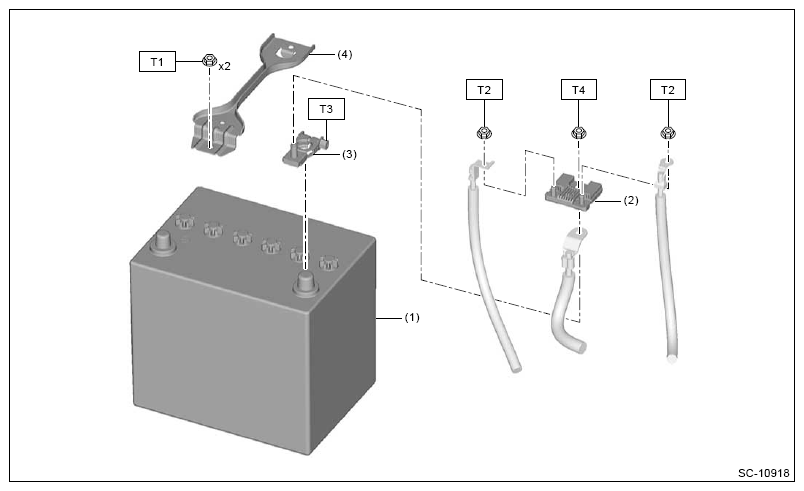

Fig 1: Battery And Slow Blow Fuse Components Location

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.5 (0.4, 2.6)

T2: 5.5 (0.6, 4.1)

T3: 6 (0.6, 4.4)

T4: 7.5 (0.8, 5.5)
