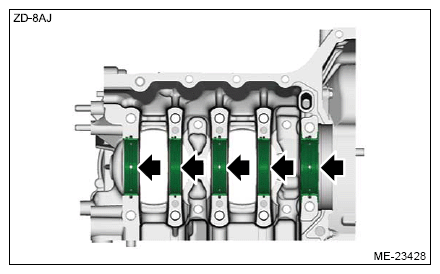

Cylinder Block: Installation

• RH side

  Courtesy of SUBARU OF AMERICA, INC.

• LH side

Courtesy of SUBARU OF AMERICA, INC.

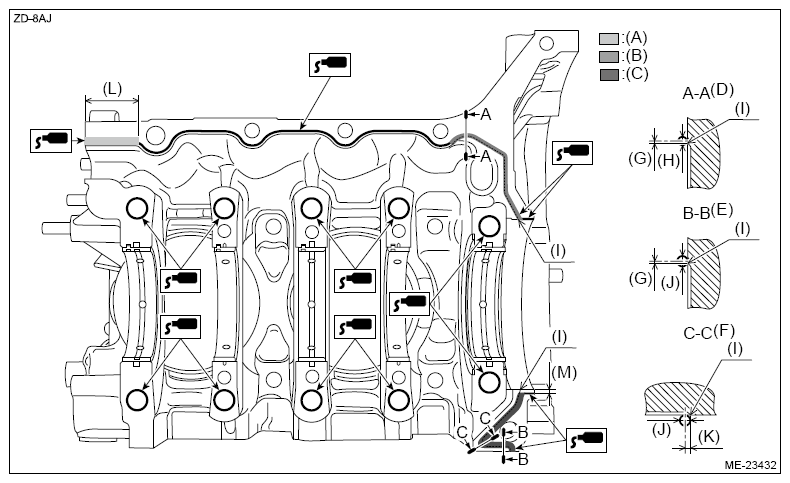

Preparation items:

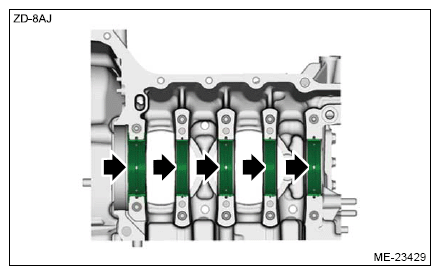

Liquid gasket: THREE BOND 1217G (part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

Mating surfaces other than ranges A, B and C

1±0.5 mm (0.0394±0.0197 in)

Mating surfaces of ranges A and C

4±0.5 mm (0.1575±0.0197 in)

Mating surfaces of range B

3.2 ±0.5 mm (0.1260±0.0197 in)

Courtesy of SUBARU OF AMERICA, INC.

1. Apply a coat of engine oil to the washers and cylinder block mounting bolt threads.
   NOTE: To prevent mixture of engine oil into the water jacket, do not apply a large amount.
2. Tighten all mounting bolts with a torque of 35 N.m (3.6 kgf-m, 25.8 ft-lb) in numerical order as shown in the figure.
3. Loosen all mounting bolts by 180° in the reverse order of tightening in step (2).
4. Tighten all mounting bolts with a torque of 35 N.m (3.6 kgf-m, 25.8 ft-lb) in numerical order as shown in the figure.
5. Loosen the mounting bolts (4 places) by 180° in the order of 6 → 5 → 4 → 3 as shown in the figure.
6. Tighten the mounting bolts (4 places) with a torque of 17 N.m (1.7 kgf-m, 12.5 ft-lb) in the order of 3 → 4 → 5 → 6 as shown in the figure.
7. Using an angle gauge, tighten the mounting bolts (4 places) by 58 - 62° in the order of 3 → 4 → 5 → 6 as shown in the figure.
8. Loosen the mounting bolts (6 places) by 180° in the order of 8 → 7 → 10 → 9 → 2 → 1 as shown in the figure.
9. Tighten the mounting bolts (6 places) with a torque of 17 N.m (1.7 kgf-m, 12.5 ft-lb) in the order of 1 → 2 → 9 → 10 → 7 → 8 as shown in the figure.
10. Using an angle gauge, tighten the mounting bolts (3 places) by 58 - 62° in the order of 1 → 2 → 9 as shown in the figure.
11. Using an angle gauge, tighten the mounting bolt 10 (1 place) shown in the figure by 78 - 82°.
12. Using an angle gauge, tighten the mounting bolt 7 (1 place) shown in the figure by 58 - 62°.
13. Using an angle gauge, tighten the mounting bolt 8 (1 place) shown in the figure by 78 - 82°.

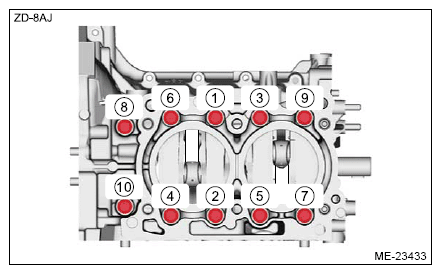

    Fig 1: Cylinder Block Mounting Bolts Tightening Sequence

    Courtesy of SUBARU OF AMERICA, INC.

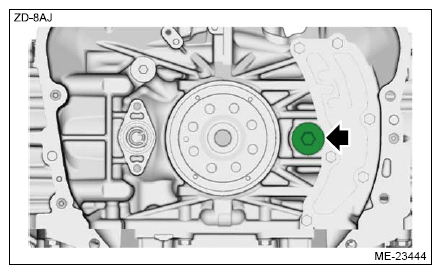

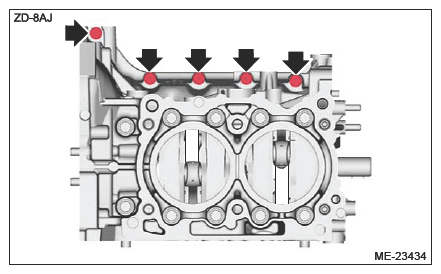

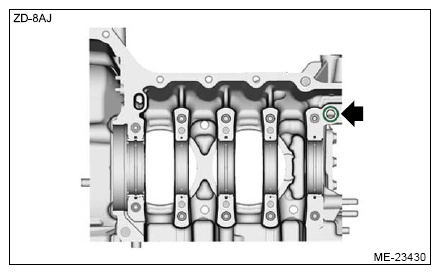

14. Install the bolt shown in the figure.
    NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surfaces of the chain cover and oil pan upper, remove any squeezed-out liquid gasket. Any liquid gasket on the chamfer area, however, should not be removed.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    Courtesy of SUBARU OF AMERICA, INC.

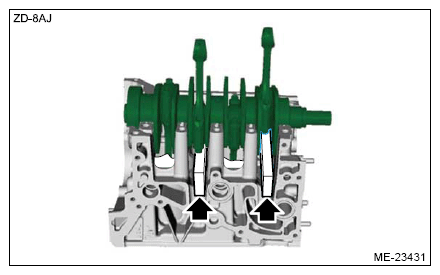

15. Remove the wood board, etc. securing the connecting rod on the cylinder block RH side.
    CAUTION: Before removing the wood board, etc, wrap the connecting rod small end on the cylinder block RH side with cloth, etc. to protect the cylinder.

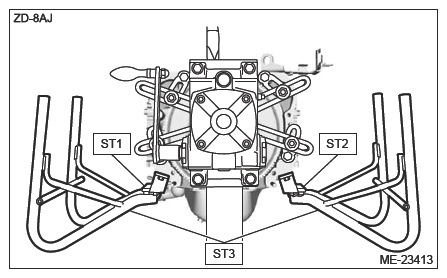

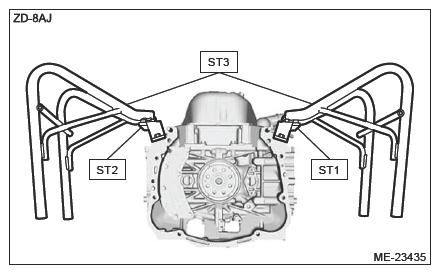

Preparation tool:

ST1: ENGINE STAND ADAPTER RH (498457000)

ST2: ENGINE STAND ADAPTER LH (498457100)

ST3: ENGINE STAND (499817100)

Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

1. Set the part so that the chain cover side is on the upper side.
2. Remove the protective cloth, etc. wrapped around the connecting rod small end of the #1 cylinder and #2 cylinder.
3. Using the ST, turn it until the connecting rod small ends of #1 cylinder and #2 cylinder are aligned with the service hole (near the bottom dead position).
   NOTE: While turning, check the connecting rod position from the cylinder and service hole.

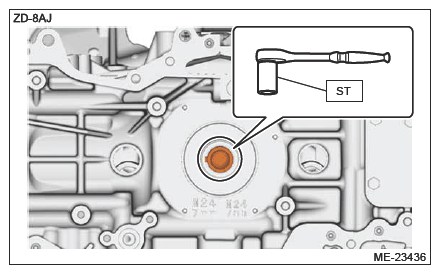

   Preparation tool:

   ST: CRANKSHAFT SOCKET (18252AA000)

   Courtesy of SUBARU OF AMERICA, INC.

4. Check that the circlip installation position and the piston ring gap for each piston are positioned correctly. Ref. to MECHANICAL (H4DO)>CYLINDER BLOCK>ASSEMBLY>PISTON .
5. Compress the piston ring using piston ring compressor, and insert the pistons of #1 cylinder and #2 cylinder into cylinder block.
   NOTE:

   • Apply engine oil to the outer circumference of the piston and in the cylinder block.
   • Before inserting the piston, move the connecting rod to around the center of the cylinder.
   • Face the piston front mark (round mark) towards the front of the engine.
     • RH side

     Courtesy of SUBARU OF AMERICA, INC.

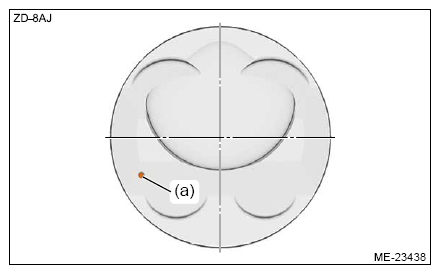

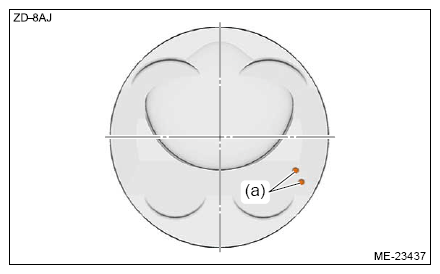

     (a)	Front mark

     Courtesy of SUBARU OF AMERICA, INC.

     (a)	Front mark

   • Insert until the piton pin hole and the connecting rod small end are almost at the same position while lightly tapping the crown of the piston with the handle of a plastic hammer and while checking the position of the piston pin hole and the connecting rod small end from the service hole.
   • RH side

     Courtesy of SUBARU OF AMERICA, INC.

   • LH side

   Courtesy of SUBARU OF AMERICA, INC.

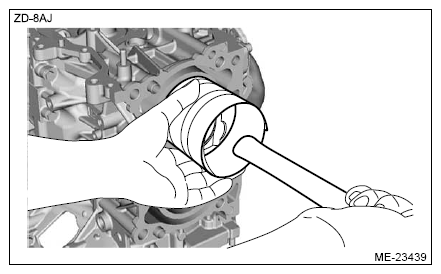

6. Using the ST, align the position of the piston pin hole and the connecting rod small end.
   CAUTION: To prevent the circlip installed to the piston from falling off, use special care not to apply excessive force to the circlip while aligning the position using the ST.
   NOTE: Apply a thin coat of engine oil to the ST.

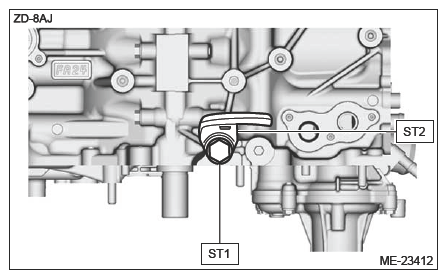

   Preparation tool:

   ST: PISTON PIN GUIDE (18253AA000)

   Courtesy of SUBARU OF AMERICA, INC.

7. Apply a thin coat of engine oil to piston pins, and insert them into pistons and connecting rods of #1 cylinder and #2 cylinder.
8. Install new circlips to the piston.
   CAUTION:

   • When installing the circlip using long-nose pliers, do not allow the circlip claw sections to contact with each other as shown in the figure.

     Courtesy of SUBARU OF AMERICA, INC.

     (a)	Gap between the circlip claw sections: 1 mm (0.0394 in) or more

   • After operation, make sure the circlip is firmly installed on the circlip groove of the piston.
   • If the circlip needs to be reinstalled after installed to the piston, the circlip cannot be reused. Use a new circlip.

   Courtesy of SUBARU OF AMERICA, INC.

9. Set the part so that the rear oil seal side is on the upper side.
   CAUTION: When moving the cylinder block, be careful not to damage the cylinder block by the connecting rod.
10. Following the same procedures as used for #1 cylinder and #2 cylinder, set the piston to the #3 cylinder and #4 cylinder and install the piston pins to the pistons and connecting rods.

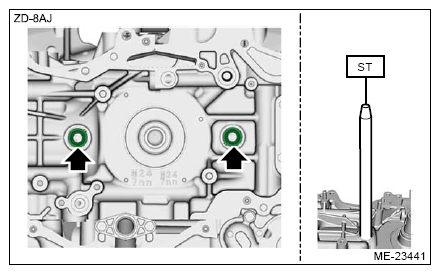

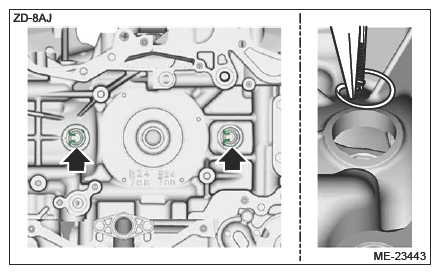

11. Install the service hole plug to the cylinder block RH.
    CAUTION: Always use a new service hole plug.
    NOTE: Before installing the service hole plug, degrease the thread portion for securing service hole plug of the cylinder block RH.

    Tightening torque:

    70 N.m (7.1 kgf-m, 51.6 ft-lb)

    Courtesy of SUBARU OF AMERICA, INC.

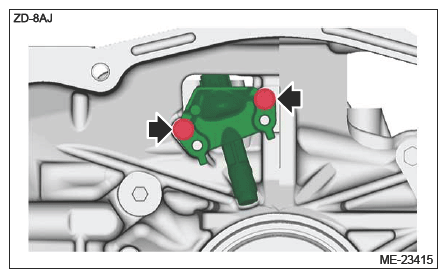

12. Install new O-rings to the cylinder block LH.

    Courtesy of SUBARU OF AMERICA, INC.

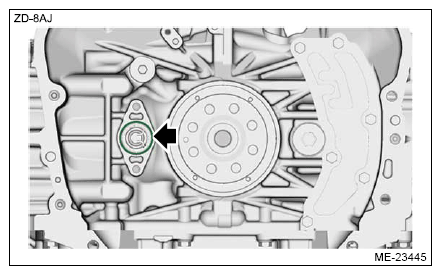

13. Install the service hole cover to the cylinder block LH.

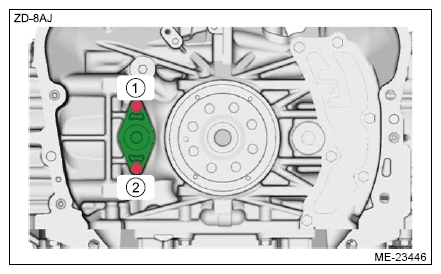

    1. Tighten the bolts with a torque of 6.4 N.m (0.7 kgf-m, 4.7 ft-lb) in numerical order 1 → 2 as shown in the figure.
    2. Tighten the bolt 1 shown in the figure with a torque of 6.4 N.m (0.7 kgf-m, 4.7 ft-lb) again.
       NOTE: This procedure is necessary to stabilize torque.

Fig 2: Service Hole Cover Bolts Tightening Sequence

Courtesy of SUBARU OF AMERICA, INC.

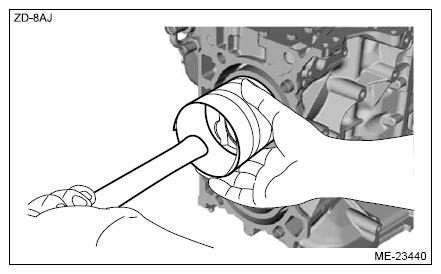

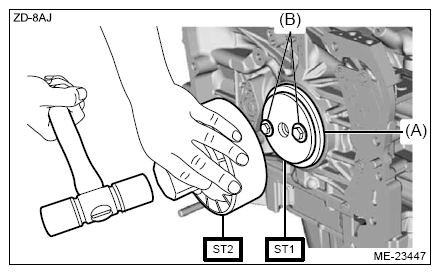

Preparation tool:

ST1: OIL SEAL GUIDE (18671AA020)

ST2: OIL SEAL INSTALLER (18657AA030)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

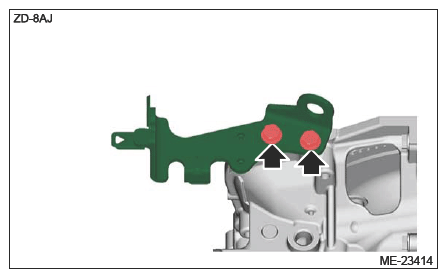

Preparation tool:

ST1: BOLT (90119-14120)

ST2: ENGINE HANGER NO. 1 (12281-38150)

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

21 N.m (2.1 kgf-m, 15.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
