Drive Plate: Inspection

Check that there is no deformation, cracks or other damages.

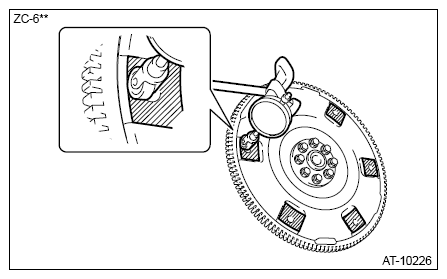

Using a roller probe, a dial gauge (spindle type), and a magnet stand, check the drive plate runout.
Specification:

0.3 mm (0.01 in)

G16525807

Courtesy of SUBARU OF AMERICA, INC.
