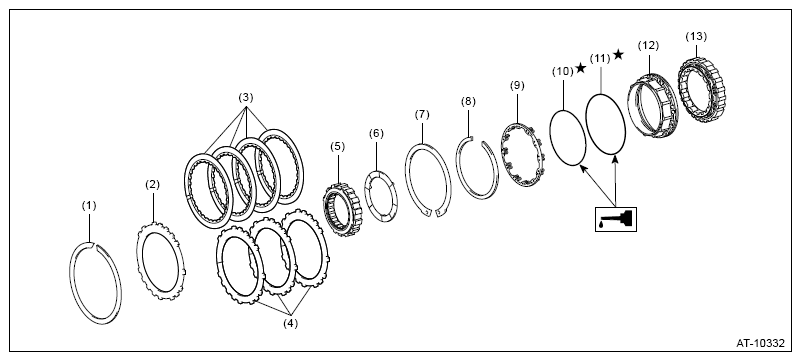

No. 3 Brake Cylinder

Courtesy of SUBARU OF AMERICA, INC.

(1)	Snap ring
(2)	No. 3 brake flange
(3)	No. 3 brake disc
(4)	No. 3 brake plate
(5)	One-way clutch
(6)	No. 1 planetary carrier thrust washer
(7)	Snap ring
(8)	Snap ring
(9)	No. 3 brake piston return spring
(10)	O-ring
(11)	O-ring
(12)	No. 3 brake piston
(13)	No. 3 brake cylinder
