Transmission Case Body

Compress the 1st & reverse brake return spring (A) using the ST to remove the snap ring (B).
Preparation tool:

ST: COMPRESSOR PISTON SPR NO. 3 (09350-07050)

Courtesy of SUBARU OF AMERICA, INC.

Remove the 1st & reverse brake return spring.

G16526046

Courtesy of SUBARU OF AMERICA, INC.

(A)	1st & reverse brake return spring
(B)	Transmission case

Check the 1st & reverse brake return spring.

Using a caliper gauge, measure the spring height "H".

Specification:

23.74 mm (0.935 in)

G16525887

Courtesy of SUBARU OF AMERICA, INC.

If the value is equal to or less than the specification, replace the 1st & reverse brake return spring with a new part.

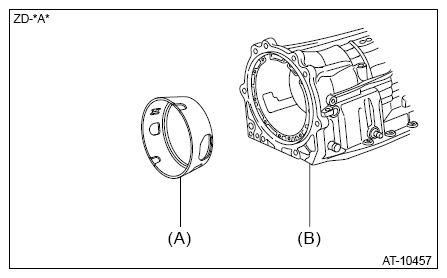

Remove the brake apply tube.

Courtesy of SUBARU OF AMERICA, INC.

(A) Brake apply tube

(B) Transmission case

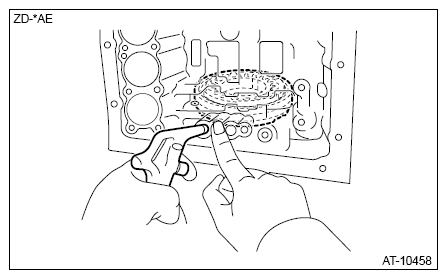

Blow compressed air through the hole shown in the figure, and remove the 1st & reverse brake piston.
CAUTION: If the 1st & reverse brake piston cannot be removed by the compressed air, use pliers, etc. to remove it.
Be careful not to damage the 1st & reverse brake piston.

NOTE: Blow compressed air of 392 kPa (4.0 kgf/cm² , 56.8 psi).

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

(A) O-ring

(B) 1st & reverse brake piston
Using the ST, remove the brake reaction sleeve (A).
Preparation tool:

ST: PULLER BRAKE REACTION SLEEVE (09350-07080)

Courtesy of SUBARU OF AMERICA, INC.

Remove the O-rings.

G16526052

Courtesy of SUBARU OF AMERICA, INC.

(A)	Brake reaction sleeve
(B)	O-ring (C) O-ring

Using the ST, remove the No. 4 brake piston (A).
Preparation tool:

ST: BRAKE NO. 1 PISTON PULLER (09350-07090)

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the No. 4 brake piston.

G16526054

Courtesy of SUBARU OF AMERICA, INC.

(A)	No. 4 brake piston
(B)	O-ring
(C)	O-ring
