Cruise Control Command Switch
- SWITCH

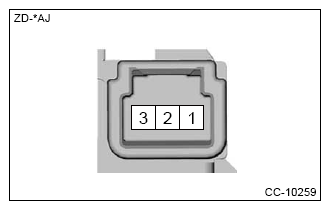

- Measure the resistance between connector terminals.
Terminal No. Inspection conditions Standard 1 - 3 CRUISE MAIN
+RES
-SET
CANCELAll OFF 1 MΩ or more CRUISE MAIN ON Less than 1 Ω +RES ON Approx. 240 Ω -SET ON Approx. 630 Ω CANCEL ON Approx. 1, 540 Ω - Replace the switch assembly cruise if it is found defective.
- Measure the resistance between connector terminals.

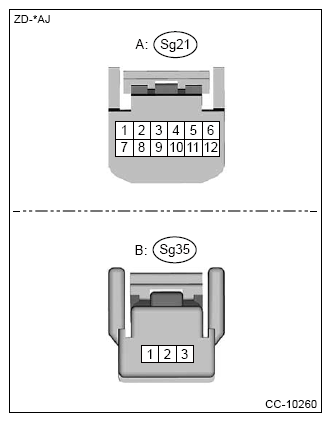

- HARNESS
