General Description
›
Components With Torque Specifications
›
Body Integrated Unit
Body Integrated Unit

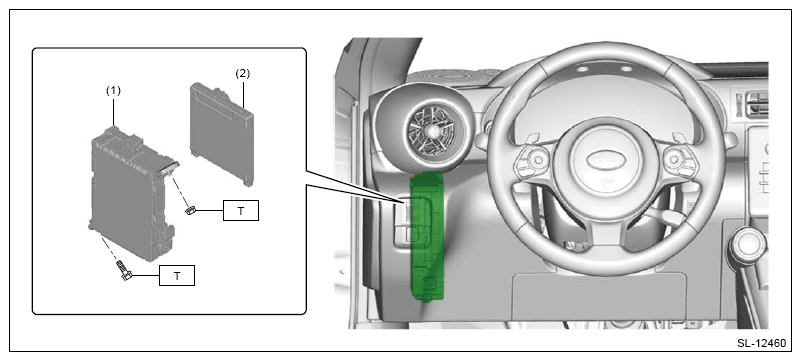

Fig 1: Body Integrated Unit Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
F/B
(2)
Body integrated unit
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
