Components With Torque Specifications

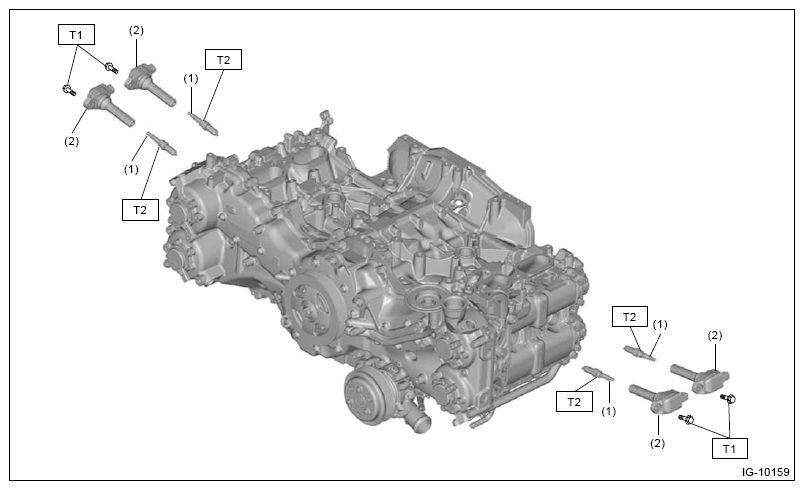

Fig 1: Ignition System Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Spark plug
(2)	Ignition coil

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8.5 (0.9, 6.3)

T2: 17 (1.7, 12.5)
